Data sheet

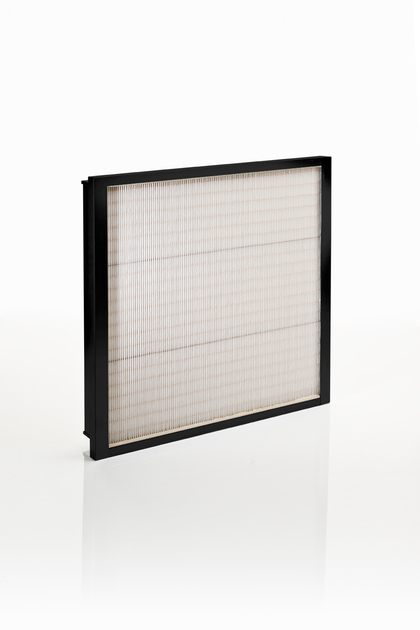

MICRATEX FP-P

With 10 m² of media packed into a self-supporting frame only 100 mm deep, Micratex FP-P offers a high dust holding capacity and long life in a compact, rigid design.

Available in a wide array of efficiencies and sizes, Micratex FP-P air filters are suited to a diverse range of applications, but particularly those which require a high level of safety and assured performance.

A plastic cavity-profile frame makes disposal easy by incineration and a low pressure drop reduces energy consumption and operating costs.

  • Air flow up to 3400 m³/h per cell

Suited for even the most demanding of applications

  • Glass fibre paper

No fibre loss or shedding

  • Large filter surface of 10.0m²

For a high dust holding capacity and long service life

  • Lightweight

Easy to install, handle and remove

  • Low pressure drop

Reduced energy consumption

  • Self-supporting and rigid

Provides a high burst pressure and eliminates dust migration

  • Fully incinerable, plastic cavity profile frame

For simple, environmentally-friendly disposal

  • Compact with an installation depth of only 100 mm

Easy to handle and store

  • Filter Class (EN 779): M6-F8

  • Energy Rating: D - E

  • Continuous Operating Temperature65 °C

  • Maximum Relative Humidity:100%

  • Flammability Class: K2/F2

  • Weight: 1.5 kg - 2.5 kg

  • Media Format: Pleated

  • Media Material: Microfine glass fibre paper

  • Frame Material:Halogen-free polystyrol

  • Gasket Material:Polyurethane

  • Incinerable:Yes
