Data sheet

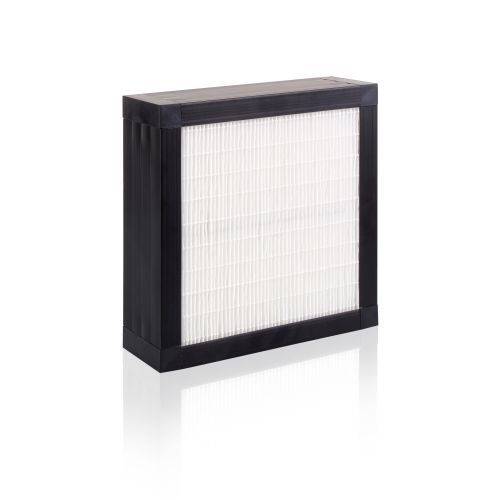

MICRATEX FP

Ideal for use in HVAC systems where space is limited, Micratex P provides dependable performance from a compact form. Two versions are available: the deeper Micratex P packs 12.8 m² of media into its 96 mm deep frame, whilst a 48 mm version is designed for use in truly low-space installations.

The moisture-resistant, plastic frame provides robustness and rigidity in all conditions, and features a hollow profile to minimise weight and simplify installation.

The mini-pleated micro-glass media delivers excellent particle separation and hotmelt separators ensure an even air flow across the filter area.

  • Air flow up to 3400 m³/h per cell

Suited for even the most demanding of application

  • Hollow-profile, plastic frame

Moisture and corrosion resistant

  • Mini-pleated, micro-glass media

For excellent particle separation

  • Lightweight

Easy to install, handle and remove

  • Low pressure drop

Reduced energy consumption

  • Self-supporting and rigid

Provides a high burst pressure and eliminates dust migration

  • Fully-incinerable

For simple, environmentally-friendly disposal

  • Filter Class (EN 779): M5-F9

  • Continuous Operating Temperature: ≤70°C

  • Flammability Class: K2/F2 (DIN 53438)

  • Media Material: Pleated micro-glass fibre

  • Frame Material: ABS

  • Gasket Material: PU-foamed
