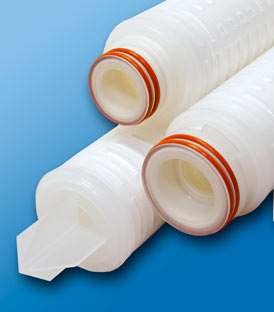

This pleated, disposable filter element is constructed of absolute rated, hydrophilic, asymmetric polyethersulfone membrane with extended filter area to allow for a high system flow rate.
7.0 ft2 (0.65 m2) of membrane surface area per 10" element — High throughput, longer on-line service reduces costly maintenance time
Absolute rated membrane from 0.1 to 0.65 μm
Manufactured in an ISO Class 7 cleanroom environment
100% flushed with 18 MΩ -cm DI water and gross integrity tested
Fixed pore construction eliminates dirt unloading as differential pressure increases
Low extractables
|
Filter Type |
Retention Rating (microns) |
Nominal Length (inches) |
End Configuration |
Gasket or O-Ring |
|
ZTEC G Series |
0.1 0.2 0.45 0.65 |
–5 –9.75* –10 –20 –30 –40 |
P Double Open End P2 226/Flat Single Open End P3 222/Flat Single Open End P7 226/Fin Single Open End P8 222/Fin Single Open End AM Single Open End, Internal O-Ring NPC Double Open End, Internal O-Ring
|
B Buna-N E EPDM S Silicone T Teflon encap. Viton (O-Rings only) V Viton
|
*Available only for DOE (P) configuration
