Data sheet

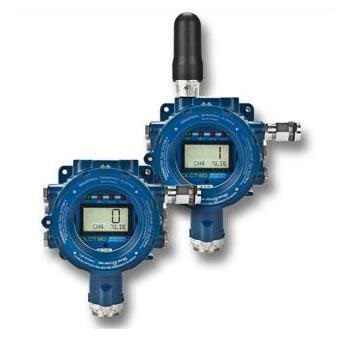

OLCT 80

Oldham is pleased to introduce its wireless system with the OLCT 80 field detector/transmitter. This new model allows wireless connectivity in ATEX 1 zones.

Features and benefits of the OLCT 80 Wireless include:

  • An infrared remote controller and on-board display for non-intrusive, one-man calibration;

  • Flameproof or intrinsic-safety sensors;

  • A design suitable for explosive areas;

  • Low power requirements;

  • Universally accepted frequency of 2.4 GHz/900MHz; and

  • Flexible input/output options, including analog, TOR and Modbus RS485

Developed in compliance with the strictest specifications, OLCT 80 transmitters are the standard in the gas detection market.

Designed to meet the demanding needs of the largest industrial companies, the OLCT 80 is a major achievement in terms of technical performance and cost optimization.  Available as remote version, flameproof or intrinsic safety approved sensors depending on gases to be detected. Detects O2, combustible, toxic and refrigerant gases. Non-intrusive, one-man calibration.

New XP IR infrared sensor for detection of combustible gases or CO2

Stand-alone central unit

For relay control, the OLCT 80 can operate as a standaloneunit: an indisputable advantage in a classified ?explosion risk zone.

Flexibility of connection modes

OLCT 80 sensors can be connected either:

  • In loop (opto-isolated - up to 16 sensors),

  • 4-20 mA,

  • Under direct power and operate as a central unit.

Operation traceability

The operator can check records locally for the most recent time-date stamped events.

Communication

Remote dialogue with the sensor using IR remote control.

Measurement power supply redundancy

Independent ports allow a redundant connection to the measurement unit.

Low power requirements

The leading edge technology used in the OLCT80 transmitter makes it very energy efficient.

This major advantage means that more sensors can be connected, with smaller wire cross-sections and overgreater distances.

Type:

Transmitter-sensor

Detected gases:

Explosive, toxic and oxygen

Detection principles:

Catalytic, Electrochemical, IR, Semiconductor

Sensor block:

Pre-calibrated

Housing Sensor:

Stainless steel 316L

Enclosure:

Aluminum

Visualization:

4-digit LCD display for measurement and one alphanumeric line for texts
Pictograms - backlighting
4 indicator lamps :

  • One green : "Operation OK"

  • One yellow : "Fault"

  • 2 red : "Alarm 1" and "Alarm 2

Power supply to sensor terminals:

Two independent inputs:

16 to 28 VDC ( catalytic / IR / SM cells)

12 to 28 VDC (electrochemical cell)
