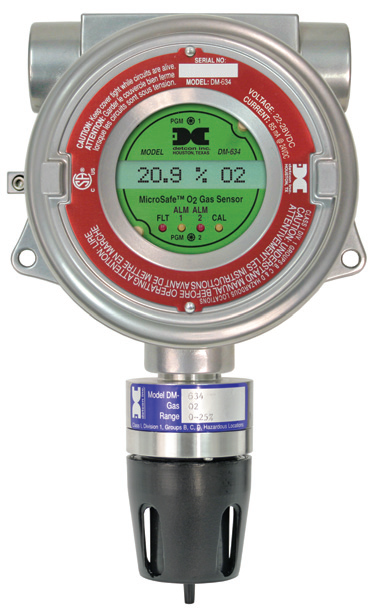

Detcon Model DM-634 detectors are non-intrusive "intelligent" detectors designed to monitor ambient air for oxygen concentrations between 0 and 25% by volume.
The sensor assembly consists of a sensor in a stainless steel housing that includes a splash guard with a full cal port, a plug-in control transmitter circuit, a basic connection board and an explosion-proof enclosure.
CSA-NRTL Listed: Class I, Division 1, Groups B, C and D
Compatible with PLCs, SCADA, DCS, via 4-20 mA, and / or RS-485, and / or alarm relays
Sensor status and parameters accessible via RS-485 (Modbus ™)
Programmable standard relays (two alarms plus fault)
Simple Menu Driven Calibration - takes less than 3 minutes
Backlit LCD display and LEDs for fault and Cal status
Pluggable field replaceable transmitter
Electrochemical plug-in sensor Built-in temperature compensation for direct correction of ambient temperature changes
Expected sensor life of 2 years in the air with 20.9% oxygen
|
Sensor type |
Galvanic metal air coil |
|
Measuring range |
0-25% oxygen |
|
Precision / Repeatability |
±2% FS |
|
Operating temperature range |
From -20 ° C to + 50 ° C; -4 ° F to + 122 ° F |
|
Operating humidity range |
0-99% RH without condensation |
|
Input voltage |
22-28 VDC |
