Data sheet

Model TP-524D

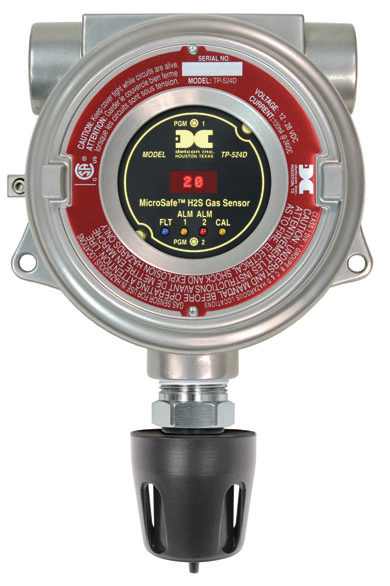

Detcon The TP-524D is a "smart" gas detection sensor designed to detect and monitor H2S in air over a range of 0 to 100 ppm using patented solid metal oxide semiconductor technology.

This innovative design offers several benefits, including longer sensor life and better temperature and humidity performance.

The TP-524D is equipped with Detcon's MicroSafe ™ intelligent electronics, non-intrusive operator interface and comprehensive fault diagnosis. The sensor transmitter has an advanced universal design that fits all existing Detos MOS H2S detectors over 20 years old.

The sensor assembly includes a MOS sensor in a stainless steel housing, a basic connection board, an explosion-proof enclosure (available in aluminum or stainless steel), a pluggable control emitter circuit and a splashguard with integrated gauge port. The packaging is explosion-proof (Class I, Division 1, Groups B, C, D).

The TP-524D is equipped with a standard 4-20 mA analog current signal equivalent to the auto-adjustable sensor detection range, zero and range, and LED indicators for fault and signal conditions. 'calibration.

A HART communication option is also available. Detcon's Solid State MOS Sensor has an infinite life and is backed by a 10-year industry leading conditional warranty

  • Certified Performance to ISA 92.0.01, Part I-1998: Performance Requirements for the H2Sx

  • FM and CSA-US certification for Class I, Division 1, Groups B, C and D

  • Transmitter design is suitable for all existing 20 year old Detos MOS H2S detectors

  • Simple menu driven calibration - less than 3 minutes

  • LED display and LED indicators for FAULT and CAL status

  • Pluggable field replaceable transmitter

  • Similar response to electrochemical sensors: T-50 <30 sec., T-80 <60 sec.

  • VERY wide operating temperature range: -40 ° C to + 75 ° C

  • 10-year warranty of the conditional sensor

  • Direct response constant temperature control

  • Resistant to exposure to high concentrations of H2S and other acid gases

  • Impervious to high humidity environments in powered and unpowered mode

  • Extended fault diagnosis

Sensor type

Continuous diffusion / adsorption

CHEMFET Solid State Metal Oxide Semiconductor

Sensor life

From 5 to 10 years typical

Measuring range

0-20 ppm, 0-50 ppm, 0-100 ppm

Precision / Repeatability

± 10% of reading or ± 2 ppm (greater of)

Response / compensation time

T50 <30 seconds; T90 <60 seconds

Outputs

Linear 4-20 mA DC

HART (optional)
