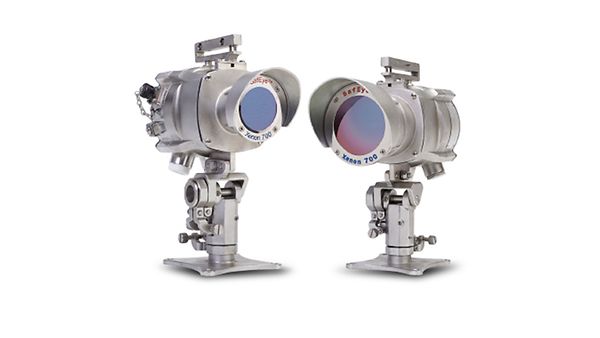

SafEye 700S Series integrates the well-proven, superior Xenon Flash technology.
The 700S series includes heated optics to withstand severe environmental conditions such as icing, snow, condensation, SIL2 approved and has a data port to allow easy access for maintenance or configuration changes.
Highest quality backed by a 3-year warranty (10-years for the source flash bulb).
The SafEye is fully functional in heavy fog, rain, etc. with up to 90% of the signal obscuration.
The low maintenance SafEye, due to its special optics design, has a misalignment tolerance of ±1° in all directions.
Flash Type Proven Technology
Detects Wide Range of Gases
Fast Response
Cost Effective - one system can replace from 5 to 20 point gas detectors
Large Misalignment Tolerance of ±1°
No Poisoning Effect
Specially Designed to Perform Under Extreme Conditions
Low Maintenance
Standard Interface Options
Rugged IP66/67 Stainless Steel Housing
3-Year Warranty (10 years for the source flash bulb)
SIL2 approved to IEC61508
HART protocol for maintenance and asset managemen
|
Response Time |
T90 - 3 sec |
|
Immunity to False Alarm |
Not influenced by solar radiation, hydrocarbon flames and other external IR radiation sources |
|
Spectral Response |
2.0 - 4.0 µm. |
|
Sensitivity Range |
0 - 5 LEL.m (optional 0 - 2 LEL.m) |
|
Displacement/Misalignment Tolerance |
±1˚ |
|
Accuracy |
±5% of full scale or ±10% of the reading, whichever is greater |
|
Repeatability |
±5% of the reading |
|
Temperature Range |
-40˚F (-40˚C) to 131˚F (55˚C) |
