Data sheet

BG3

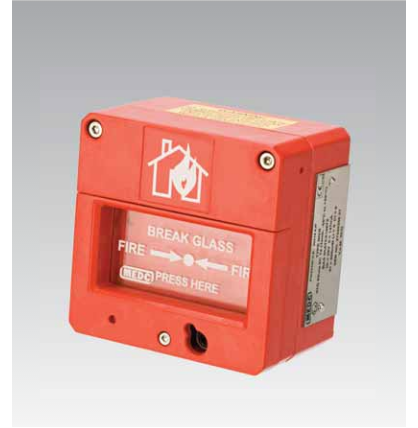

This manual fire alarm call point has been designed in accordance with the latest draft European Call Point Standard (EN54-11). Weatherproof to IP66 and IP67 and available certified intrinsically safe, simple apparatus or uncertified.

The units are manufactured from glass reinforced polyester (GRP) which provides a robust, corrosion free construction and ensures effective and reliable operation in harsh industrial and offshore environments.

Units are supplied in natural red GRP or painted to customer specification. ‘Burning House’ duty label is provided as standard, other duty and tag labels may be supplied to customer specification.

  • Zone 0, Zone 1 and Zone 2 use

  • Certified temperature: –55ºC to +55ºC

  • Corrosion free GRP.

  • Optional in line/end of line resistors/diodes.

  • Optional LED indicator.

  • Optional lift flap.

  • Key operated test facility.

  • Various body colours available.



BG3I

BG3W

Protection:

Explosion Protected Exi

(Intrinsically Safe)

Dust-tight & Weatherproof

Certification:

CENELEC EN50014, 020

BASEEFA Exia IIC T4

Cert No. BAS00ATEX1067X

Suitable for use in Zones 0, 1 & 2

Not applicable

Voltage:

Up to 28V (IS)

Up to 250V a.c.

Certified Temperature:

-55ºC to +55ºC

Not applicable

Ingress protection:

IP66 & IP67

IP66 & IP67

European Standard for Call Points:

EN54-11

EN54-11

Terminals:

6 x 4.0mm2

6 x 4.0mm2

Switch Ratings:

Not Applicable

d.c.   0V - 30V 3A resistive or inductive

         30V - 50V 1A resistive or inductive

a.c.    0 - 250V 3A resistive or inductive

Resistor Values:

470R Minimum

270R Minimum

Cable Entries

2 x M20 top or bottom

2 x M20 top or bottom

Weight:

0.5Kg

0.5Kg
