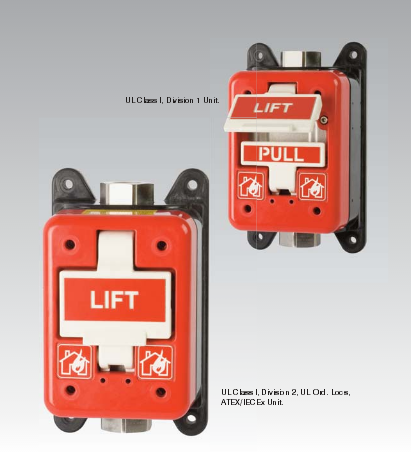

The PH1 double action pull handle call point has been designed for use in flammable atmospheres and harsh environmental conditions.
The GRP enclosure is suitable for use offshore or onshore where light weight combined with a high level of corrosion resistance is required.
The large “Lift” and “Pull” GRP handles can be operated effortlessly whilst wearing industrial gloves and require double action to raise the alarm, preventing accidental activation.
Zone 1 and Zone 2 use
NEMA 4X & 6. IP66 & IP67
Certified temperature: -55ºC to +70ºC*.
Corrosion free GRP construction.*
Optional in line, end of line resistors and diodes.
Retained stainless steel cover screws.
*Model dependent.
|
Material: |
Body/covers/handles:- GRP (glass reinforced polyester). UL Class I, Div. 1 Inner Cover: 316 (ANC4B) Stainless Steel. Fixings:- Stainless steel grade 316. |
|
Finish: |
Cover:- natural red, Body:- natural black. Handles:- natural white. Cover may be painted to customer’s requirements |
|
Voltage: |
0-50Vdc, 0-254Vac. |
|
Switch Rating: |
1 or 2 c/o switches, 254V, 3A max |
|
Weight: |
UL Class I, Div 2, ATEX, IECEx & UW: Gross weight 3.2Kg. Net weight 2.6Kg. UL Class I, Div. 1: Gross weight 4.4 Kg. Net weight 3.8Kg. |
|
Certified Temp: |
ATEX & IECEx: -55ºC to +70ºC. UL Class I, Divs. 1 & 2, UW: -50ºC to +70ºC |
