Data sheet

DM-700-C2H2

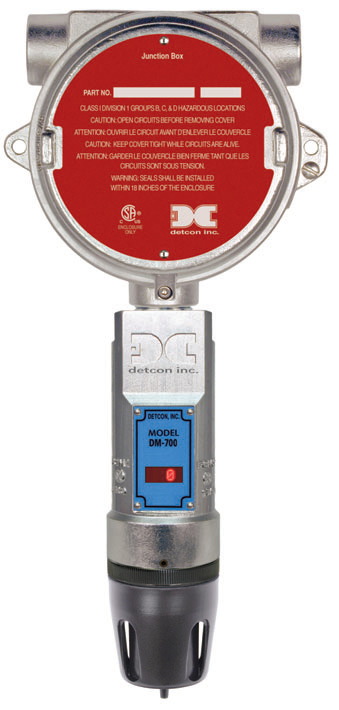

Detcon Model DM-700-C2H2 is a non-intrusive “Smart” sensor designed to detect and monitor Acetylene in air over the range of 0-100 ppm using electrochemical sensor technology.

The intelligent plug-in, field replaceable cell provides automatic recognition of gas type and range, and features over-sized gold-plated connections that help prevent corrosion.

The Model 700’s rugged framework includes an intrinsically safe electro-polished 316 stainless steel housing with fully encapsulated electronics and dual layer surge protection. This innovative design virtually eliminates sensor failure due to water ingress, corrosion, vibration, and transient spikes.

A primary feature of the Model 700 is embedded intuitive software that simplifies operator interface by guiding the user through routine calibration, configuration, and fault diagnostic functions using a built-in alpha/numeric display.

The Model 700 is equipped with standard analog 4-20mA, and Modbus™ RS-485 outputs. Among its unique features is a wireless option that can be used with Detcon’s SmartWireless® product line.

Additional integration options include a Remote Alarm Module (RAM), HART, and Foundation Fieldbus. Detcon’s toxic gas sensors have a long shelf life and are supported by an industry-leading warranty.

Failsafe User-Friendly Interface

  • LED Display (With Antiglare Cover)

  • Full Text Display Method

  • Non-intrusive Interface

  • Auto Zero/Auto Span

  • Pre-emptive Fault Diagnostics

Environmentally Bulletproof

  • Electropolished 316SS Construction

  • 100% Epoxy Encapsulated Circuitry

  • Bulletproof I/O Protection

  • Water-Proof, Corrosion-Proof, Vibration-Proof

Modular and Serviceable

  • Modular Design

  • Plug and Play Components

  • Quick Thread Release (For Sensor Replacement)

  • Integral Calibration Port

Sensor Type

Continuous diffusion/adsorption

3-electrode electrochemical cell

Plug-in field replaceable Intelligent Type

Measurement Range

0-100 ppm,

Other ranges available

Accuracy/Repeatability

±2% FS

Response/Clearing Time

T90 <140 seconds

Span Drift

<5% signal loss per year

Outputs

Linear 4-20 mA DC

RS-485 MODBUS-RTU
