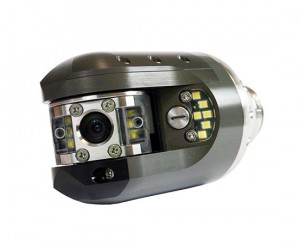

PAN AND TILT-COLOR-TV-CAMERA
Useable from DN 70 to DN 400
Suitable for bends as of 87° / DN 100
Parallel laser for measurement functions
Automatic horizon compensation
Automatic 0-position
Automatic 90° left / right pan function
Automatic 360° inspection function
Internal pressure-supervision
Electronic adjustable focus
Monitor insertions: rotation- and angle of slew,
Internal pressure in bar with alarm function in the case of pressure drop
Available as PAL and NTSC
Pluggable camera head made out of aluminium-stainless steel combination
(60 mm / 2.36 inch diameter, 100 mm / 3.94 inch length)
Waterproof to 5 bar
18 dimmable, ultrabright cold light LEDs
Weight: approx. 680 g / 1.5 lbs
Image sensor: 1/4" Color-CMOS
High-resolution color camera module (420 lines)
Wide angle lens
Swivel range: +/- 120°
Continuous rotation
