DF-TV7

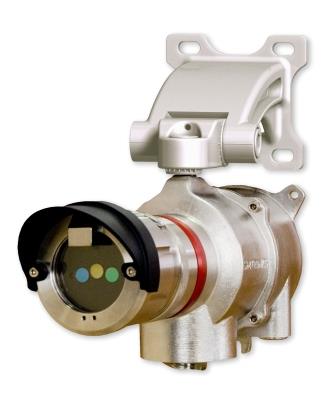

The DF-TV7-T is a multispectral infrared flame detector using three wavelengths. The DF-TV7-T detects carbon fires, it offers the best solution for the detection of fires generating a lot of smoke (bad combustion).

The DF-TV7-T Multiflame is designed to detect hydrocarbon fires by minimizing nuisance alarms.

The device offers different types of outputs and can be used on SIL 3 level applications. It can be interfaced with a large number of fire, detection or PLC plants.

The detector can be fully parameterized using the wireless communication terminal (TLU) or optionally via HART (R) communication, offering great flexibility to the user. The response time, the sensitivity, the configuration of the outputs are adjustable with the TLU usable in hazardous area.

Testing of optical, electronic and output parts is also possible with the TLU.

  • Immunity against nuisance alarms

  • Wide detection range

  • Continuous optical self-tests

  • Relay outputs, 4-20mA, 0-22mA, as standard

  • Optional 4-20 mA / Hart output

  • SIL 3

Technology

Infrared multi-spectrum, 3IR

Fires detected

Hydrocarbons and carbon compounds

Scope of detection *

N-heptane lights 80m, gasoline 65m

* long-range detector, tray 0.3 x 0.3m

Field of view

Maximum horizontal angle 1 20 °

Horizontal angle 50% of range 1 04 °

Vertical angle 50% of range 82 °

Response time

Adjustable from 3 to 20 seconds (typical 6 sec.)
