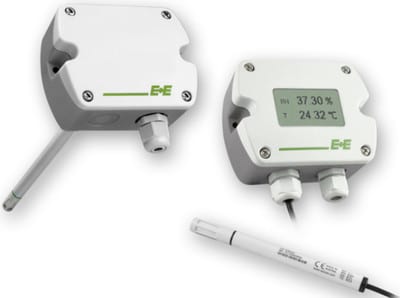

The EE210 is the ideal transmitter for high accuracy measurement of relative humidity and temperature in demanding climate control applications.
With encapsulated measurement electronics inside the sensing probe and E+E proprietary coating protection of the humidity sensor, EE210 can be employed even in harsh and aggressive environment.
Wall, duct and remote probe versions
Voltage and current analogue outputs freely configurable by the user
BACnet MS/TP or Modbus RTU Interface
Optional Display
High accuracy
Outstanding temperature compensation
Best protection against condensation and pollution
Very robust sensing head
Easy mounting
Calculated physical quantities
Dew point temperature
Frost point temperature
Absolute humidity
Mixing ratio
Water vapor partial pressure
Specific enthalpy
Wall, duct and remote probe versions
Voltage and current analogue outputs freely configurable by the user
BACnet MS/TP or Modbus RTU Interface
Optional Display
High accuracy
Outstanding temperature compensation
Best protection against condensation and pollution
Very robust sensing head
Easy mounting
Calculated physical quantities
Dew point temperature
Frost point temperature
Absolute humidity
Mixing ration
Water vapor partial pressure
Specific enthalpy
|
MEASURING RANGE HUMDITY |
0...100% RH |
|
MEASURING RANGE TEMPERATURE |
-40...60 °C (-40...140 °F) |
|
ANALOGUE OUTPUTS |
0-5/10 V or 4-20 mA |
|
ACCURACY HUMDITY |
-15...40 °C <90% RH ±(1.3+0.003*mv)% RH -15...40 °C >90% RH ±2.3% RH -40...60 °C ±(1.5+0.015*mv)% RH |
|
ACCURACY TEMPERATURE |
±0.2 °C (0.34°F) |
|
DIGITAL OUTPUT |
BACnet MS/TP or Modbus RTU |
|
POWER |
24V AC/DC |
