Data sheet

EE10

EE10 is a high accuracy, long term stable humidity and temperature room transmitter designed for HVAC applications in residential and commercial buildings.

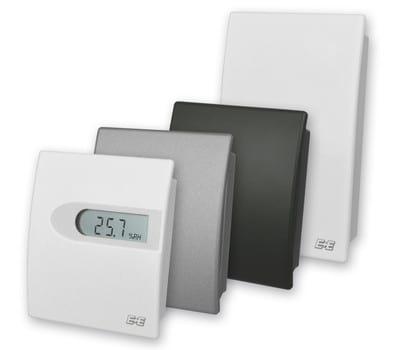

The very stylish, functional housing is available in European and US size and features an optional display. The snap-in enclosure allows for easy installation; the replacement of the active part of the device for service purposes can be done without any tools within seconds.

The humidity and temperature measured values are available on two 4 - 20mA or 0 - 10V outputs. EE10 is also available with passive temperature output.

  • High accuracy and long term stability

  • Modern design

  • Easy installation

  • Optional display

  • EU and US enclosures

MEASURING RANGE

0...95% RH

-5...55 °C (23...131 °F)

ACCURACY

±2% RH

±0.25 °C (±0.45 °F)

OUTPUTS

0-10 V or 4-20 mA

POWER

24 V AC/DC
