Data sheet

EE33

EE33 is optimised for reliable humidity and temperature measurement in applications with temporary condensation, permanent high humidity or chemical exposure. Condensation on the monolithic humidity sensor and the filter cap is prevented by controlled heating of the sensor.

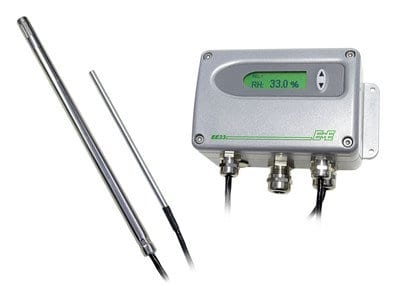

The measuring principle of EE33 type J with separate humidity and temperature probes and dual heating enables precise continuous measurement even at permanent high humidity.

The remote probe can be employed up to 180°C (356°F) and the pressure tight version up to 100bar. The three-part design of rugged enclosure in polycarbonate or aluminium allows easy mounting and replacement. The measurands are available on two analogue outputs and a serial interface.

An optional relay output can be used for alarms and process control. The proprietary coating protects the sensors and their leads against corrosive and electrically conductive pollution.

  • Highest measurement accuracy with monolithic humidity sensor

  • Heating modes for temporary condensation, permanent high humidity or chemical exposure

  • Optional module for external triggering of heating mode

  • Short response time and fast recovery after condensing conditions

  • Precise measurement at permanent high humidity

  • Outstanding temperature compensation

  • Sensor protection against pollution and corrosion

  • Rugged aluminium enclosure

  • Pressure tight probe up to 100 bar

  • Process temperature up to 180°C

  • Analogue current and voltage outputs

  • Optional RS-485 and standard RS-232 interface

  • Optional alarm outputs

  • Optional LCD Display

  • Additional physical quantitites calculated

  • Easy field adjustment

  • Outputs freely configurable by user

  • Dew point only type available

MEASURING RANGE

0...100% RH

-40...180°C (-40...356 °F)

ACCURACY

±1.3% RH

±0.2 °C (0.36 °F)

RESPONSE TIME

< 15s

SERIAL INTERFACE

RS232C + optional RS485

OUTPUTS

0-1/5/10 V or 0/4-20 mA

POWER

24V AC/DC
