Data sheet

EE08

The EE08 is optimized for accurate humidity and temperature measurement over a wide working range.

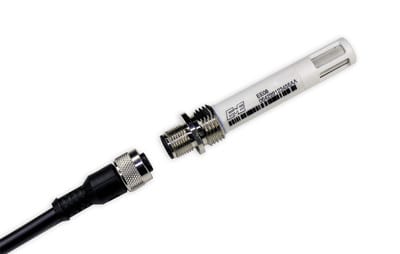

The probe has both analogue and digital outputs and is available with either cable or M12 connector. It is possible to choose between active and passive temperature measurement.

The probe is easily installed and dismounted thanks to the M12 thread. Low power consumption and short start-up time make the EE08 ideal for battery operated systems.

For meteorology and other outdoor applications, the EE08 can be used with the optional radiation shield.

With an optional confugration kit, it is possible to adjust the humidity and temperature reading and set up the analogue outputs

  • Highest measurement accuracy

  • Outstanding long term stability

  • Wide working temperature range

  • Compact and easily interchangeable

  • Low power consumption

  • Short start-up time

  • Adjustment and outputs setup by the user

MEASURING RANGE

0...100% RH

-40...80 °C (-40...176 °F)

ACCURACY

±2% RH

±0.2 °C (±0.36 °F)

OUTPUTS

Analogue and E2 digital (2-wire)

POWER

4.5-15V or 7-30V DC
