Data sheet

EE245

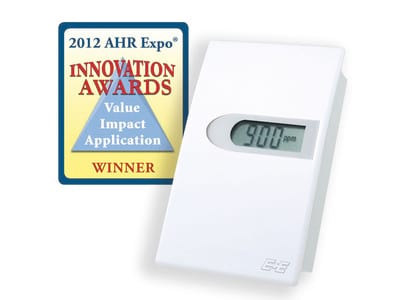

The room wireless transmitter EE245 is based on the IEEE 802.15.4 protocol with a transmission frequency of 2.4 GHz and measures up to three physical quantities: relative humidity, temperature and CO2.

The measurement values can be shown locally on the optional display. EE245 ca be powered either by batteries or by an external power supply.

Depending on the physical cuantities measured, the sampling and transmission rate, the battery life may last up to 3 years.

  • Measurement of temperature, humidity and CO2

  • Wireless network with up to 500 transmitters

  • Uses 1.5 V AA aklaline batteries or external power supply

  • Battery life up to 3 years

  • Optional display

MEASURING VALUES

Humidity, Temperature, CO2

TRANSMISSION FREQUENCY

2.4 GHz

TRANSMISSION SYSTEM

IEE 802.15.4

TRANSMISSION POWER

10mW

RADIO RANGE

1000m in open field
