Data sheet

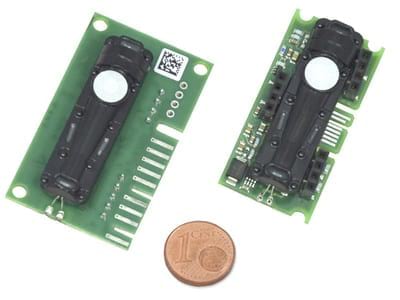

EE893

EE893 operate on the dual wavelength NDIR principle, which stands for outstanding long term stability even in demanding environment.

A multiple point CO2 and temperature adjustment procedure leads to excellent CO2 measurement accuracy over the entire temperature working range.

With their low power consumption, plug-in connectors and card reader, EE893 is the optimal plug-in for battery operated devices.

They can be configured by the user to match the requirements of most OEM applications.


  • Dual wavelength NDIR CO2 working principle

  • Measuring range up to 10,000ppm

  • Auto-calibration for excellent long term stability

  • Temperature compensation

  • Very low temperature dependency

  • High insensitivity to pollution Easy user configuration and adjustment

  • Very low current consumption down to 60 μA

  • Digital output

  • Miniature size

MEASURING RANGE CO2

0...2000 ppm

0...5000 ppm

0...10000 ppm

ACCURACY CO2

±(50 ppm +2% of mv)

±(50 ppm +3% of mv)

±(100 ppm +5% of mv)

DIGITAL OUTPUT

E2 interface

POWER

4.75-7.5V DC
