Infrared Transmitter Detector
SIL2 Capability (according to EN 50402/EN61508)
MTBF of 28 years (according to INERIS CGR 7448)
Non-intrusive calibration
Fail-safe technology
Reliability

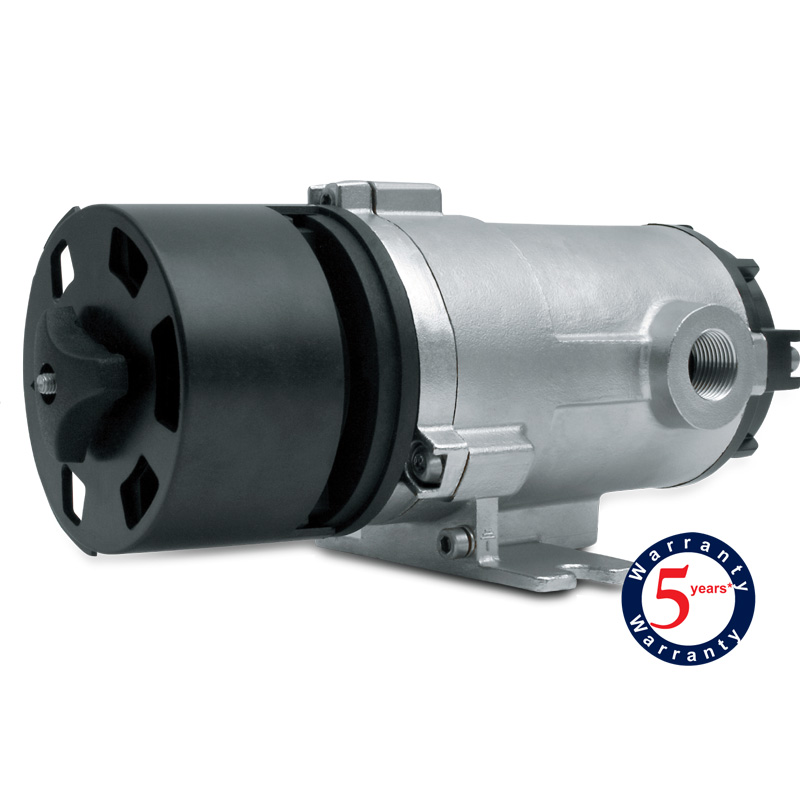

The OLCT IR is a highly reliable infrared gas detector.
SIL2 capable according to the standard EN 50402, the OLCT IR has a probability of failure on demand (PFD) of 0.0016.
Mean Time Between Failure (MTBF) is 28 years.
Efficiency
Based on the infrared absorption principle, the OLCT IR offers significant advantages when compared to catalytic detectors. Its dual source, four-beam technology further improves the unit’s performance over other infrared detectors.
IR Technology:
Quick response time
Operates in oxygen-deficient atmospheres
Fail safe
Measure without contact:
No alteration of optical elements
Minimal maintenance
Resistant to poisons
Double sources / 4 beams:
Compensation for dirty optics
No long term drift caused by source and optical detector aging
