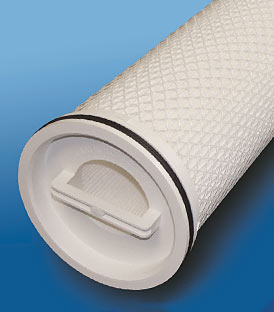

Graver High Flow Series filters feature a larger geometry to handle higher flows with fewer filter elements.
The result is much faster, easier filter changeouts. In addition, the inside to outside flow allows for excellent dirt holding capacity, extending the time between filter changeouts.
Filter housings are also available and because of the filters high flow and dirt holding capacity, smaller systems are possible, reducing upfront capital costs.
6" diameter, large geometry for high flow rates
Absolute retention ratings from 1 to 100 microns
Capable of flow rates up to 500 GPM in a single 60" element
Inside-out flow retains contaminant even during changeout
Multi layer pleated construction with optimized surface area
Outer cage prevents media extrusion problem experienced with some competitive offerings
Unique Quad Seal gasket provides maximum seal integrity
Retrofits competitive high flow filter housings
Thermally bonded construction
Media/Support/Cage: Polypropylene
End caps: Polypropylene
O-rings: EPDM, Silicone, Buna-N, Viton
Micron ratings: 1, 3, 5, 10, 20, 40, 60, 100 µm
Dimensions Nominal lengths: 20", 40", 60" (50.8, 101.6, 152.4 cm)
