Data sheet

TI-100

The TI-100 is a high efficiency, high capacity filter / coalescer suitable for use in industrial applications for rotating machinery such as engines, gas turbines and continuous flow compressors.

media:

TI-100 is a disposable media of continuous fiberglass with gradual density and covered with an adhesive. These features give the media high efficiency and high dust holding capacity. The air outlet side of the TI-100 is green.

Installation:

The TI-100 has a thickness of 100 mm and when installed in a single filter frame, the media is compressed to 50 mm, further increasing the efficiency.

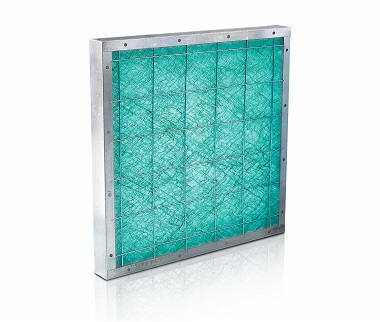

Frame:

This coalescer can be installed in a standard filter frame with a hinged facade or in specially designed filter cassettes. Double deep frame for two series filters are also available. Frames are available in galvanized steel or stainless steel.

  • Continuous density continuous glass fibers

  • Gives greater efficiency without compromising pressure drop

  • High arrest

  • For cleaner applications

  • Combined air filter and water coalescer

  • Ideally suited for coastal applications

  • Available in double depth filter frames

  • For demanding applications

Air filter

TI-100

Filter class

G3

Thickness

100 mm

Average arrest of dust

89%

Rated face speed

2,5 m/s

Initial resistance

40 Pa

Rec. final resistance

250 Pa

Dust retention capacity

3 000 g / m2 (SAE)

Input / output color

white green
