Data sheet

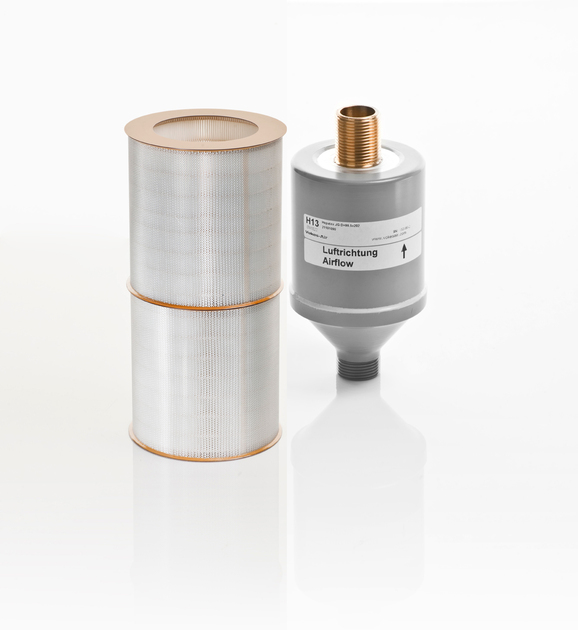

Hepatex J Series

The Hepatex J series is a range of cylindrical air filters designed to separate particles such as bacteria, viruses or contaminants suspended in air, compressed air or gases.

Incorporating a JP fine dust filter, two JG and JK HEPA filters, and the JKG-W filter housing, the Hepatex J series is suitable for a wide range of applications, such as medical, research and industry.

With quality levels you can count on, Hepatex J Series fluids, sheaths, seals and seals are manufactured under controlled conditions, while the media is tested for separation efficiency, tensile strength, its weight and its impermeability.

Each completed JK and JG HEPA filter also undergoes a DIN 24184 oil mist test, with JP fine dust filters subject to visual inspection after fabrication.

  • Compact, space-saving designs

  • Simple to install

  • Low pressure loss

  • Reduces energy consumption and reduces operating costs

  • Available in a wide variety of sizes and types of enclosures

  • Suitable for a wide range of applications

  • Large filter area

  • Provides a long life service

  • Tested individually and without leakage

  • For a guaranteed performance

  • Corrosion resistant (JK) with plastic case (JKG-W)

  • Ideal for use in demanding applications

Filter class (EN 779 and EN 1822)

F9 / H13

Maximum operating temperature

90 °C

Relative humidity

< 85 - 100%

Media format

Cylindrical

Media material

Cellulose / fiberglass
