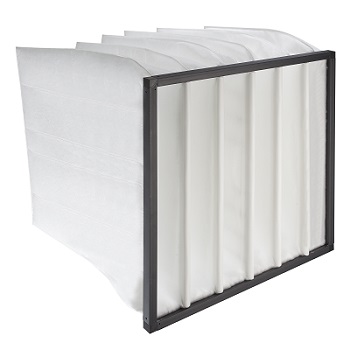

With excellent dust holding capacities, Novatex GT II bag filters offer a longer service life to make yours easier. Reduced filter expenditure, lower maintenance costs, fewer change-outs, less to dispose of – Novatex GT II will save you time and money.
With rigid pockets, low pressure drop and a progressivelystructured media, Novatex GT II proves that a long life does not have to come at the expense of performance, and, with a range of sizes and filtration efficiencies, there’s a combination to suit all requirements.
Synthetic filter medium
For reliability in operation
Long lifetime in operations
Lowers costs
Fully incinerable
Easy, environmentally-friendly disposal
Free of glass fibres
Eliminates shedding
Low pressure drop
Reduces energy consumption and operating costs
|
Filter Class |
Unit |
G4 |
M5 |
M6 |
F7 |
|
Nominal Air Flow* |
m³/h |
3,400 |
3,400 |
3,400 |
3,400 |
|
Arrestance (acc. to EN 779) |
% |
≥ 90 |
- |
- |
- |
|
Efficiency (acc. to EN 799) |
% |
- |
40-60 |
60-80 |
80-90 |
|
Initial Pressure Drop* |
Pa |
30 |
40 |
40 |
70 |
|
Recommended Final Pressure Drop |
Pa |
250 |
450 |
450 |
450 |
|
Pocket Length (standard type) |
mm |
635 |
635 |
635 |
635 |
|
Size of Header Frame (1/1) |
mm |
592x592 |
592x592 |
592x592 |
592x592 |
|
Energy Rating** |
- |
- |
A |
A |
A |
*Tolerance: ± 10%
**Energy Rating - as is the case with many consumer goods, our M5-F9 filters are rated according to their energy efficiency on a scale of A+ (the best) to E (the worst). These ratings are certified by Eurovent and in accordance with the 4/21 scheme.
Available Variations
|
Frame |
Plastic or Metal: 20 or 25 mm |
|
Number of Pockets |
G4, M5, M6: 6 pockets | F7: 10 pockets |
|
Pocket Lengths 1) |
200, 300, 360, 500, 635 mm |
|
Gasket |
Without, or flat gasket available on request |
|
Air guides |
Standard |
|
Temperature |
Up to 80°C |
|
Relative Humidity |
Up to 100% |
1) Other dimensions available upon request
