Designed for use in the harshest environments, Pulsatex pulsed filters are designed to withstand high levels of dust load and protect gas turbines worldwide.
With its self-cleaning pulsed jet capability, Pulsatex combines consistent performance with low cost of ownership.

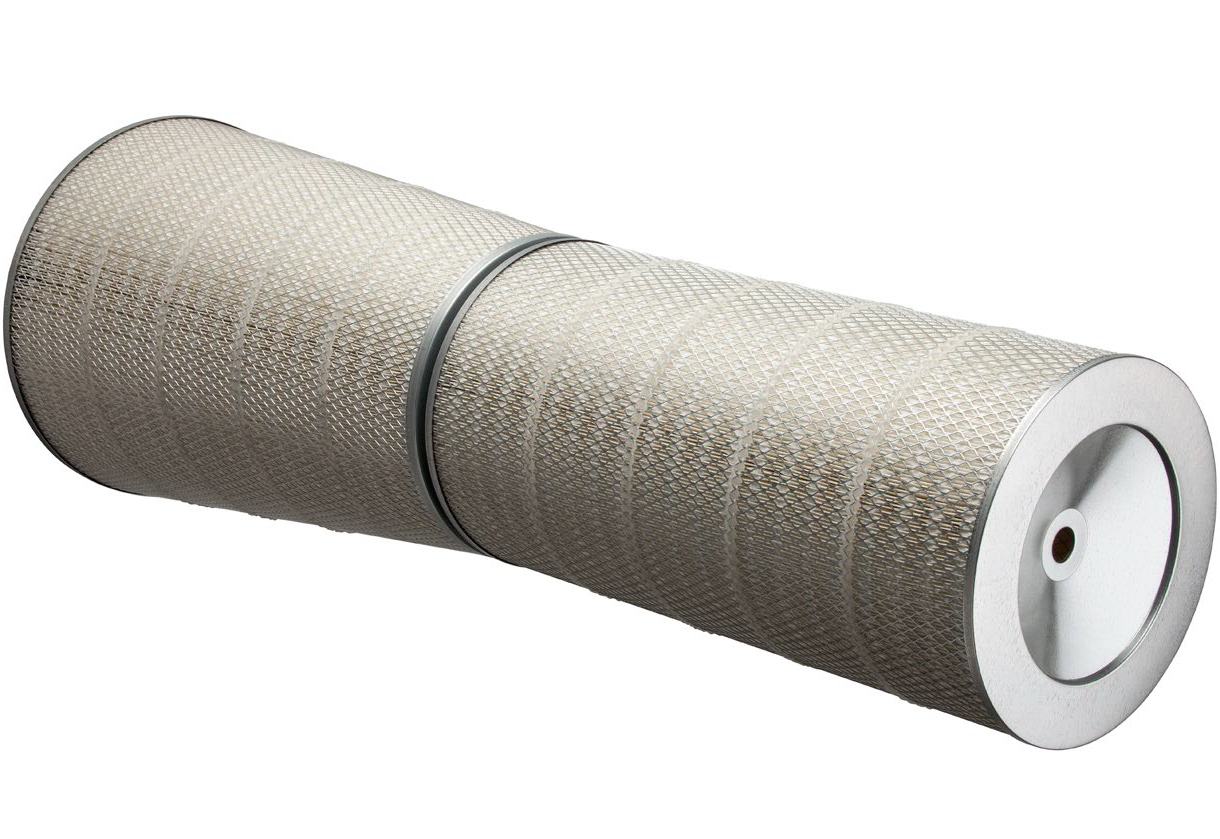

Available in cylindrical or conical format, Pulsatex can be used individually or in combination for higher airflow rates and dust retention capabilities.
In addition, with three types of support and a range of dimensions, Pulsatex offers excellent flexibility to meet the precise requirements of gas turbine operators, regardless of their operating environment or existing systems.
Pleatlock uniform spacing of folds
For maximum service life and minimal restriction of airflow
Available in a wide range of media types
Provides even wrinkle spacing and maximum dust holding capacity
Galvanized expanded steel inner and outer sleeves
Support the media pack and protect the media from damage
Pleats attached to outer sleeves with hot melt beads
Maintains wrinkle spacing and prevents movement during pulse cleaning
Galvanized steel end caps
For resistance to rust for life
Polymerized polyurethane plies and plug bonding system
Eliminates air bypass and provides maximum pulling force
Cylinder
|
Filter material |
Mixture / Mixture FR / Mixture / NF / Synthetic
|
|
Height |
660 mm |
|
Outside diameter
|
324 mm |
|
Internal diameter |
212 mm |
|
gaskets inside the diameter |
255 mm |
|
Diameter of the bolt hole
|
13,5 mm |
|
Filtration area |
21 m² |
|
Nominal capacity of the air flow |
1153 m³/h |
|
Rated air / media speed |
0,015 m/sec |
|
Lining gaskets |
welded |
Cone
|
Filter material |
Mixture / Mixture FR / Mixture / NF / Synthetic |
|
Height |
660 mm |
|
Outside diameter |
445 mm / 324 mm |
|
Internal diameter |
330 mm / 212 mm |
|
gaskets inside the diameter |
402 mm |
|
Diameter of the bolt hole |
n/a |
|
Filtration area |
23 m² |
|
Nominal capacity of the air flow
|
1200 m³/h |
|
Rated air / media speed |
0,015 m/sec |
|
Lining gaskets |
welded |
Technical characteristics
|
Rated resistance |
< 25 mmwg |
|
Filter class (EN 779) |
F9 |
|
Operating temperature |
-29 °C à +66 °C |
|
Relative humidity in operation |
100% |
Versions
|
Standard |
Spot welded |
|
On request |
Mechanical lock |
