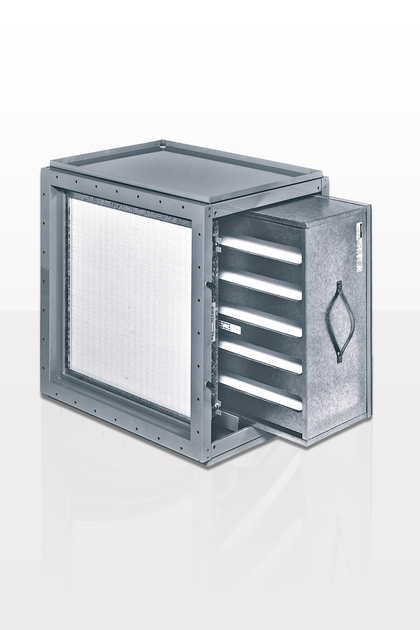

NG is a range of filtration ducts suitable for airflows up to 12,000 m³ / h.
The housings are designed for the installation of various types of filters, including HEPA / ULPA filters and activated carbon units, all of which can be used with or without an integrated prefilter.
NGs are fast and easy to assemble and are available in a multitude of sizes.
In addition, simple NG elements can be combined by removing the side cover plate to form larger units, or alternatively, series-connected to create a multi-stage system.
Installed directly into duct systems for ultra-clean air supply, the NG can handle horizontal or vertical airflow as needed, and maintenance can be done from the sides or below.
The housing, mounted as close as possible to the air outlet, allows conventional air distribution, which means that the filter can be changed from outside the clean air area
Mounted near the air outlet
Filter change can occur outside the clean air zone
Test groove of the filter seal (according to DIN 1946)
Simplifies maintenance and safety inspections
Guide rails for filter installation
To facilitate assembly
Optional pre-filter optional
For pre-filtration and final filtration in one unit
Pre-filter attached separately with clamping springs
Changeable regardless of the final filter
Units can be installed in several combinations
Removable side cover plate allows great flexibility
For maintenance at a glance
|
Frame material |
Epoxy coated steel |
|
Cover plate material |
Galvanized steel / Epoxy coated steel |
|
Compatible air filters |
Hepatex CR / Hepatex N / Micratex FP-P / Compatex FP / AFP |
