Over the last decades, we have successfully equipped thousands of operating rooms and our customers have enjoyed the quality of our systems for many years.
CG³, the third generation of laminar flow ceilings from MANN + HUMMEL, combines our proven experience in clean air ceilings with the latest technology, unmatched quality and cost-effective management.
CG³ meets today's increased demands for performance, flexibility and quality while minimizing cost of ownership with low power consumption.
A special aluminum profile construction allows for the perfect integration of the CG³ system with media bridges, surgical lights and ceiling suspensions, allowing the medical team to work seamlessly with surrounding equipment.
Climate of the room without draw
For maximum comfort
Minimum noise level
For a non-disruptive environment
Smooth surface housing
Easy to clean and disinfect
Minimal concentration of pathogens
<10 KBE / m³ in the sterile field
Very low pressure drop
Energy consumption and very economical operating costs

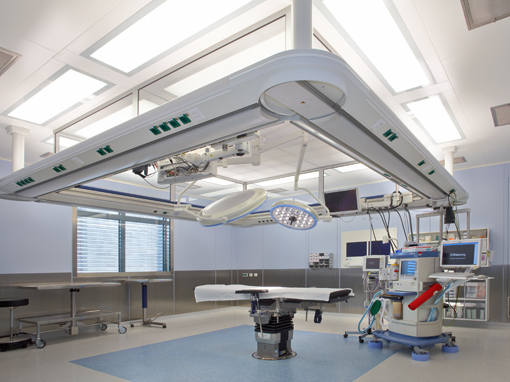

Seamless integration of ceiling mounted equipment and ceiling O.R.
Allow the medical team to work fluently with the surrounding equipment
Flexible and modular solution range
Adjustable to local requirements
Pressure Chamber
Sealed pressure chamber made of stainless steel (1.4301)
Smooth inner surfaces for simple disinfection during filter changes
Pressure chamber mounted on a stable profile, made of galvanized aluminum
Airtight housing for the integration of O.T light foot with openings for maintenance
Sealed ports for temperature sensors
Port of aerosol
Port for measuring pressure differences
Separate seal leak test ports for each HEPA filter (in conjunction with the test groove)
Stainless steel flange (1.4301)
Filter and diffuser frame
Galvanized aluminum profile frame with integrated stainless steel frames for placement of filter cells and CG diffuser. The aluminum profile provides rails for easy and flawless placement of false ceiling or other connection equipment, and is also prepared for sterile field integration and O.R. lighting.
filters
HEPA filter cells, height 93 mm as H14
Protected from both sides against accidental contact
Filter the change on the clean side
Sterile Air Diffuser-CG
Transparent diffuser with micro mesh double layer, made from a special textile
Assembly and disassembly without screws or tools
Aluminum profile frame with optimized airflow
Passage of the O.R. light support
Complete construction of smooth and screwless clean side
Stabilizers of air flow
8 mm impact resistant glass curtain
Secured in an aluminum frame to ensure laminar airflow
200 mm high
Frame for O.T. and sterile field illumination
Integrated frame for the housing of the O.R. and sterile field illumination. The frame allows a perfect integration of the laminar flow ceiling and luminaires. Light bodies can be positioned directly in the frame.
Sterile field and O.T. Lighting
Clean room lighting for sterile field illumination up to 2000 lux and for the surrounding operating theater.
Three tubes / lights with electronic dimming
Prepared for up to three circuits
Technical characteristics
|
Volume of air flow |
9,000 m³/h |
|
External dimensions (length x width) |
3272 x 3273 mm |
|
Sterile air flow field (length x width) |
3170 x 3171 mm |
|
Height of the pressure chamber |
465 mm |
|
Height of available ceiling space |
480 mm |
|
Average air speed |
0.25 m/s |
|
Number of HEPA filters |
4 pcs. 1220 x 1067 mm / 2 pcs 1220 x 915 mm / 2 pcs 1220 x 610 mm |
|
Filter class (EN 1822) |
H14 |
|
Initial pressure loss |
60 Pa |
|
Max recommended pressure drop |
180 Pa |
