Optiflu fluff separators are installed in operating theatres and other medical applications such as intensive care units for the efficient removal of fluff. Produced by scrubs, clothing and drapes, fluff can contaminate exhaust dust systems, create fire hazards and damage or block air handling unit components.

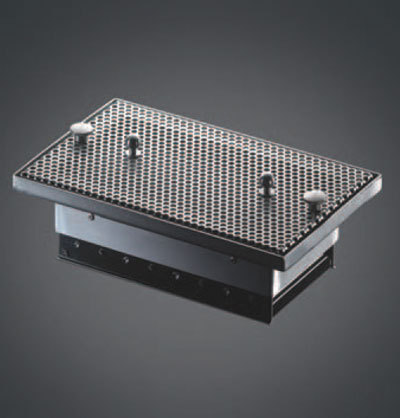

Designed for installation in the duct, wall or intermediate ceiling, Optiflu consist of three parts, all constructed from stainless steel 1.4301:
The gas-tight, welded fluff separator frame is easily removed without tools and can be sterilised up to 134 °C, whilst the fabric conforms to DIN 16611. The perforated protection plate has knobs for simplified handling.
Pursuant to ÖNORM H6020
Highest separator performance
Due to a special fine stainless steel fabric (1.4301) mesh width: 250 μm max.; wire thickness: 50 μm max.
Maximum stability
Because of a stainless steel frame insert (1.4301) made from tightwelded moulded tube
Ultimate resilience
Enables steam sterilisation using temperatures of up to 134° C
Highest separator fabric protection
Due to perforated stainless steel sheet cover (1.4301)
Very simple connection with air duct system
Based on an exact manufactured holding frame made of stainless steel (1.4301)
Required air volume regulation
By a blade volume control damper
|
Mesh Width (maximum) |
250 µm |
|
Wire Size (maximum) |
50 µm |
|
Maximum Sterilisation Temperature |
134 °C |
|
Material |
Stainless Steel (1.4301) |
