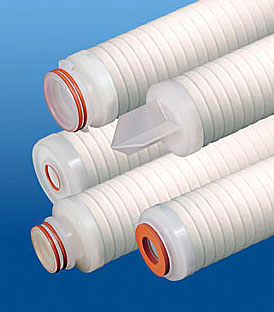

Two-stage depth filter cartridge
The COAX depth filter cartridge is a two-stage depth filter.
The first step is made of non-woven melt blown polypropylene to trap coarser particles.
The second stage consists of a polypropylene fiber and two-component polyethylene to ensure the retention of fine particles.
This unique design provides a true two-zone graduated structure that offers a marked increase in service life and dirt capacity.
In addition, the rigid nature means that there is no bending of the cartridge and that it considerably reduces the migration of the supports and the unloading of the particles.
Two-stage depth filter
Maximum dirt retention and service life
Inert construction made of pure polyolefin, without excretory media
Broad chemical compatibility
Extractible weak
Extensive range of lengths and configurations
Rigid construction resists unloading
|
media |
Polypropylene / heat-sealed polyethylene fiber |
|
End Caps |
Polypropylene (if used) |
|
Gaskets / O-rings |
Viton, EPDM, Buna N, Santoprene, Viton, Viton encapsulated with Teflon (O-rings only) |
|
Micron evaluations |
0.5, 1, 3, 5, 10, 25 µm |
