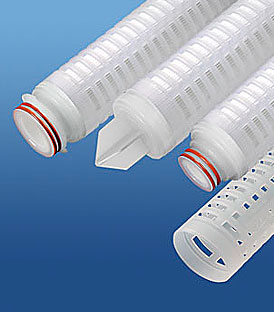

This filter is constructed with a high surface area melt blown polypropylene media for low initial pressure drop, high dirt holding capacity, and high efficiency performance
Micron ratings from 0.2 to 20 μm — broad application range
“Absolute” Efficiency — rated at 99.98% (Beta 5000)
High surface area — high flow rate, and long service life — minimize maintenance cost
Fixed pore construction — resists dirt unloading at maximum diff erential pressure
Polypropylene construction — inert to many process fluids
Various gasket/O-ring materials — compatible with many fluids
Heavy duty molded cage — high structural strength
Highly consistent melt blown media for consistent performance
|
Filter Type |
Retention Rating (microns) |
Nominal Length (inches) |
End Configuration |
Gasket or O-Ring |
Pre-Rinse Option |
Insert |
|
QMA Series |
0.2 5 0.45 10 1 20 2.5 |
–5 –9.75* –10 –20 –30 –40 |
P Double OpenEnd P2 226/Flat Single Open End P3 222/Flat Single Open End P7 226/Fin Single Open End P8 222/Fin Single Open End PX Extended Core AM Single Open End, Internal O-Ring NPC Double Open End, Internal O-Ring
|
B Buna-N E EPDM S Silicone T Teflon encap. Viton (O-Rings only) T Teflon Gasket |
–R Factory PreRinse |
–I End cap insert for steaming |
