Data sheet

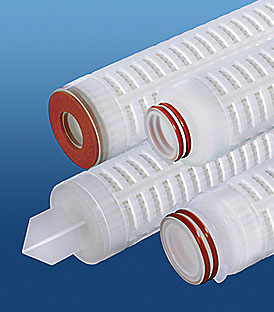

QXL Series

With its extra-loft, extra-life depth filter configuration, the QXL is designed for the filtration of industrial solutions containing agglomerated particles and gels or with high viscosity.

Consistent absolute retention performance is achieved throughout the pleated, layered microfiber matrix.

The state-of-the-art, optimized structure provides significantly higher flow rates and throughputs than cylindrical melt blown filters.

  • Hybrid pleated depth construction combines graded pore structure with high surface area.

  • Constructed entirely of polypropylene — Compatible with a broad range of solutions and chemicals

  • Optimized pleat confi guration — Provides the ideal combination of retention, fl ow rate and throughput

  • Excellent gel and agglomerated particle retention reduces defects

  • Available in common end cap confi gurations — Retrofi ts easily into most fi lter housings

Filter Type

Retention Rating (microns)

Nominal Length (inches)

End Configuration

Gasket or O-Ring


QXL Series

0.45      5

0.5      10

1         20

3         40

–5         –20

–9.75    –30

 –10      –40




P          Double Open End

P2       226/Flat Single Open End

P3       222/Flat Single Open End

P7        226/Fin Single Open End

P8        222/Fin Single Open End

AM           Single Open End, Internal O-Ring

B             Buna-N

E               EPDM

S             Silicone

T      Teflon encap. Viton (O-Rings only)

V                   Viton

–I  End Cap Insert

–R Factory Pre-Rinse
