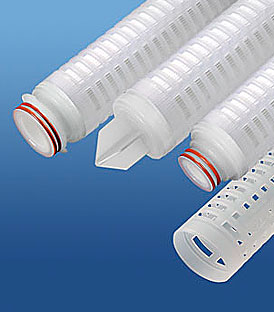

This cost effective, disposable filter element can be used for a wide range of applications.
The filter is constructed of pleated polypropylene filter media with high surface area that allows for greater system flow rate.
Micron ratings from 0.2 to 50 μm — Broad application range
Fixed pore structures — Resists unloading of captured contaminant
Polypropylene Construction — Inert to many process fluids
Various Gasket/O-Ring materials — Compatible with a variety of fluids
Economically efficient fi ltration
Manufactured in continuous lengths up to 40 inches
|
Filter Type |
Retention Rating (microns) |
Nominal Length (inches) |
End Con guration |
Gasket or O-Ring |
|
PMC Series |
0.2 2 0.25 5 0.45 10 0.5 25 1 50 |
–5 –20 –9.75* –30 –10 –40
|
P Double Open End P2 226/Flat Single Open End P3 222/Flat Single Open End P7 226/Fin Single Open End P8 222/Fin Single Open End AM Single Open End, Internal O-Ring NPC Double Open End, Internal O-Ring
|
B Buna-N E EPDM S Silicone T Teflon encap. Viton (O-Rings only) T Teflon Gasket V Viton |
*Available only for DOE (P) configuration
