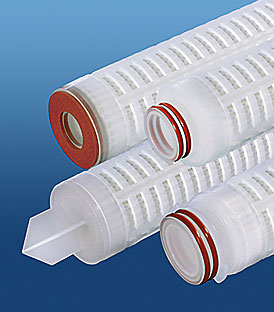

This high efficiency, economical filter element is constructed of pleated Borosilicate Microfiberglass media that combines excellent flow rates with exceptional service life.
The nominally-rated borosilicate microfiber depth matrix has a natural positive charge that aids in the retention of negatively charged particulates such as colloidal materials or contaminants that may form haze within a fluid.
The depth characteristic of glass media also provides enhanced retention of deformable particles as compared to typical polypropylene media. The GFC filter cartridge is an economical solution for both liquids and gases in a wide variety of prefiltration applications.
Micron ratings from 0.2 to 30 μm — Broad application range
Uniform pore size — High removal efficiency
High surface area — High flow capability and dirt holding capacity
Long service life — Minimizes maintenance costs
Fixed pore construction — Eliminates dirt unloading at maximum differential pressure
|
Filter Type |
Retention Rating (microns |
Nominal Length (inches |
End Configuration |
Gasket or O-Ring |
Options |
|
GFC Series |
0.2 3 0.45 10 1 30
|
–5 –20 –9.75*–30 –10 –40
|
P Double Open End P2 226/Flat Single Open End P3 222/Flat Single Open End P7 226/Fin Single Open End P8 222/Fin Single Open End AM Single Open End, Internal O-Ring NPC Double Open End, Internal O-Ring
|
B Buna-N E EPDM S Silicone T Teflon encap. Viton (O-Rings only) V Viton |
–I End Cap Insert for Steaming |
*Available only for DOE (P) configuration
