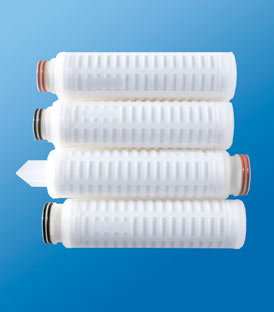

TefTEC cartridge filters are constructed with naturally hydrophobic PTFE membrane and polypropylene support layers and components.
The HIMA retentive PTFE membrane off ers superior hydrophobicity and water intrusion resistance compared to PVDF and polypropylene membranes, and the cartridge construction offers a cost-eff ective alternative to all-fluorocarbon filters.
TefTEC filters are ideal for gas/vent applications and the filtration of aggressive chemicals and solvents.
High surface area, single-layer construction provides superior flow rates and minimizes filtration system size
100% Flushed with 18 MΩ-cm DI water and integrity tested
Filters are manufactured, flushed, tested and packaged in an ISO Class 7 Cleanroom Environment
Each filter element stamped with pore size, lot and serial number for identification and traceability
Complete qualification guide available
Available prewet for use with aqueous based chemicals
|
Filter Type |
Retention Rating (microns) |
Nominal Length (inches) |
End Configuration |
Gasket or O-Ring |
Options |
|
TefTEC Series |
0.05 0.1 0.2 0.45 1 |
–5 –9.75* –10 –20 –30 –40 |
P Double Open End P2 226/Flat Single Open End P3 222/Flat Single Open End P7 226/Fin Single Open End P8 222/Fin Single Open End AM Single Open End, Internal O-Ring NPC Double Open End, Internal O-Ring
|
B Buna-N E EPDM S Silicone T Teflon encap. Viton (O-Rings only) V Viton
|
–W PreWet |
