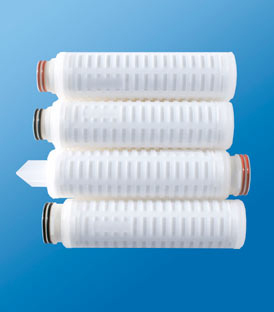

TefTEC V cartridge filters are constructed with naturally hydrophobic PTFE membrane and polypropylene support layers and components.
The economical PTFE membrane cartridge filter provides superior hydrophobicity as compared to polypropylene filters commonly used in compressed air applications, making it ideally suited for utility as well as tank vent applications, without the higher costs of the typical PTFE filter.
Additionally, the filter has been demonstrated to produce sterile air utilizing a bacterial aerosol challenge methodology, emulating the actual removal character of the fi lter in vent applications.
Single-layer construction provides superior flow rates and minimizes filtration system size
100% Flushed with 18 megohm DI water and integrity tested
Filters are manufactured, flushed, tested and packaged in an ISO Class 7 Cleanroom Environment
Each filter element stamped with pore size, lot and serial number for identifi cation and traceability
Demonstrated bacterial removal in air with an aerosol challenge level of 107 Brevundimonas diminuta/10" cartridge
Complete qualifi cation guide available
|
Filter Type |
Retention Rating (microns) |
Nominal Length (inches) |
End Configuration |
Gasket or O-Ring |
|
TefTEC V Series |
0.2 |
–5 –9.75* –10 –20 –30 –40 |
P Double Open End P2 226/Flat Single Open End P3 222/Flat Single Open End P7 226/Fin Single Open End P8 222/Fin Single Open End AM Single Open End, Internal O-Ring NPC Double Open End, Internal O-Ring
|
B Buna-N E EPDM S Silicone T Teflon encap. Viton (O-Rings only) V Viton
|
*Available only for DOE (P) configuration
