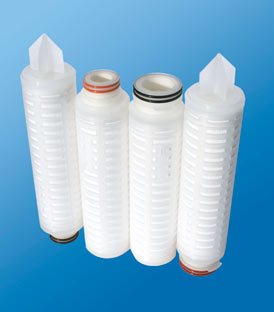

ZTEC B Bioburden Reduction grade membrane cartridges provide highly consistent performance for bioburden reduction and particle removal across a wide range of beverage, pharmaceutical and biological fluids.
The naturally hydrophilic PES membrane fi lters provide exceptional flow rates, long on-stream life, broad chemical compatibility and have no added surfactants to contribute to extractables.
The cartridges are integrity testable and steamable to assure reliable service in critical applications.
Manufactured in an ISO Class 7 Cleanroom Environment
100% flushed with ultrapure DI water and integrity tested
Repeatably steamable/sanitizable
High retentions up to 107 /cm2 challenged for bacteria and yeast
Pore size, lot and serial number are stamped on each filter element for identifi cation and traceability
Complete qualifi cation guide available
|
Filter Type |
Retention Rating (microns) |
Nominal Length (inches) |
End Configuration |
Gasket or O-Ring |
|
ZTEC B Series |
0.2 0.45 0.65 |
–5 –9.75* –10 –20 –30 –40 |
P Double Open End P2 226/Flat Single Open End P3 222/Flat Single Open End P7 226/Fin Single Open End P8 222/Fin Single Open End AM Single Open End, Internal O-Ring NPC Double Open End, Internal O-Ring
|
B Buna-N E EPDM S Silicone T Teflon encap. Viton (O-Rings only) V Viton |
*Available only for DOE (P) configuration
