Data sheet

ZTEC E Series

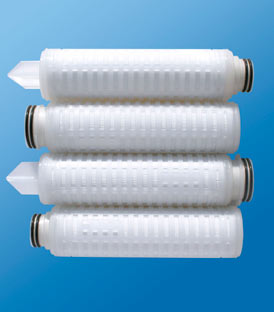

ZTEC E microelectronics grade cartridges represent Graver’s latest development in ultrapure water filtration technology.

The filters are inherently hydrophilic and contain no added surfactants or wetting agents that could contaminate pure and ultrapure water streams.

The PES membrane offers superior flow characteristics, high contaminant capacity and consistent removal of submicron particles.

The cartridges exhibit rapid rinse-up to 18 MΩ-cm resistivity and single digit ppb levels of TOC.

  •  Manufactured, flushed, tested and packaged, in an ISO Class 7 Cleanroom Environment.

  •  Filters are 100% fushed with 18 MΩ-cm DI water and integrity tested.

  •  Resistivity rinse-up to 18 MΩ-cm and single digit ppb TOC levels with minimal throughput.

  •  Available in a variety of end cap/adapter configurations to fit all industry-standard housings.

  •  Pore size, lot and serial number are stamped on each filter elementfor identification and traceability.

  •  Complete quali cation guide available.

Filter Type

Retention Rating (microns)

Nominal Length (inches)

End Configuration

Gasket or O-Ring

ZTEC E Series

0.03

0.1

0.2

0.45

–5

–9.75*

–10

–20

–30

–40

P                        Double Open End

P2         226/Flat Single Open End

P3         222/Flat Single Open End

P7          226/Fin Single Open End

P8          222/Fin Single Open End

AM     Single Open End, Internal O-Ring

NPC         Double Open End, Internal O-Ring



B              Buna-N

E                EPDM

S              Silicone

T       Teflon encap. Viton (O-Rings only)

V                   Viton

*Available only for DOE (P) configuration
