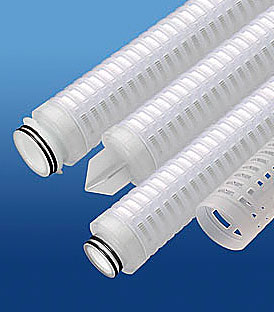

The WaterTEC filter series is constructed of absolute rated, hydrophilic, asymmetric polyethersulfone membrane and polypropylene components.
The filter is designed for overall filtration economy and provides excellent flow rates and throughputs.
Low pressure drop reduces energy costs
High dirt holding capacity minimizes change-outs and down time
All thermal bonded construction with no adhesives
Available in all common configurations to allow use of existing filter housings
Cost-effective absolute filtration
|
Filter Type |
Filter Type |
Nominal Length (inches) |
End Configuration |
Gasket or O-Ring |
Options |
|
WaterTEC Series |
0.05 0.1 0.2 0.45 0.65 |
–5 –9.75* –10 –20 –30 –40 |
P Double Open End P2 226/Flat Single Open End P3 222/Flat Single Open End P7 226/Fin Single Open End P8 222/Fin Single Open End AM Single Open End, Internal O-Ring NPC Double Open End, Internal O-Ring
|
B Buna-N E EPDM S Silicone T Teflon encap. Viton (O-Rings only) T Teflon Gasket V Viton |
–I End Cap Insert –R Factory Pre-Rinse
|
*Available only for DOE (P) configuration
