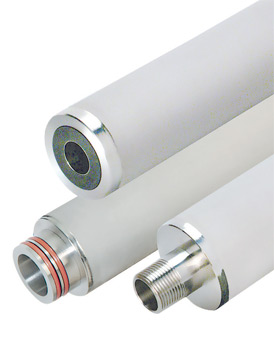

TPE series filters are porous metal filters designed for applications involving heat, gases, aggressive chemicals, cryogenics or polymers.
Made from metal powder, that is sintered to form a rugged, fixed pore structure, TPE filters are made to withstand temperature extremes, high pressures and repeated cleaning/ backwash cycles.
There are no longitudinal seams, for improved mechanical strength and corrosion resistance.
TPE filters are produced in a range of configurations and micron ratings to perform in a variety of liquid and gas applications.
Constructed entirely of sintered titanium or 316 Stainless Steel powder — offers high corrosion resistance
Cleanable/backwashable — allows for re-use, maximum economy
High temperature sintering — no media migration, high pressure capabilities
Various gasket/O-Ring materials and configurations — easily retrofits most systems
|
Filter Type |
Material |
Retention Rating (microns) |
Nominal Length (in) |
End Configuration |
Gasket or O-Ring |
|
TPE Series 60 mm Diameter |
S 316 Stainless Steel T Titanium |
0.5 1 5 10 15 35 50 100 |
–5 –9.75 –10 –20 –30 –40 |
P Double Open End (Hard Endcaps) P2 226/Flat Single Open End P3 222/Flat Single Open End M1 ¾ Inch MNPT Threads M2 1 Inch MNPT Threads
|
B Buna-N E EPDM N None S Silicone T Teflon encap. Viton (O-Rings only) T Teflon Gasket V Viton |
