Data sheet

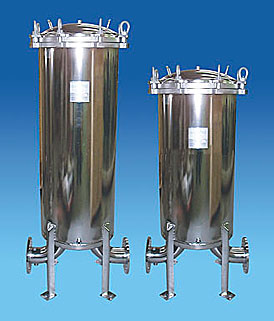

IHP Series Industrial Filter Housings

The industrial enclosures of the IHP series are designed for filtration applications involving chemical systems, high purity water or critical process flows requiring high efficiency.

These sturdy vessels are built entirely of 316L stainless steel to optimize corrosion resistance.

Design features minimize retention volumes, facilitate emptying and optimize cleanability.

Available as open bottom "T" style for 3 rounds - 7 round and open top "T" style for 12 and 21 rounds.

  • Constructed of parts in contact with 316L stainless steel fluid Maximum resistance to corrosion and purity

  • Single bolted design Simple, convenient and ensures joint integrity

  • Easy to drain Conical bottom allows complete drainage

  • Available in three 21-round rounds, 10 "to 40" high

  • Suitable for standard cartridge configurations


EPDM O-ring in 316L stainless steel (other options available)


DOE, 226, 222


Opti-Clamp bolt down

Surface finish:
External surfaces
Internal surfaces:

Beaded and passivated

Finishing the mill and passivated

3, 5, 6, 7, 12, 21 rounds

Filter lengths:

10", 20", 30", 40" (25.4, 50.8, 76.2, 101.6 cm)

Operating Parameters Maximum Operating Pressure:

125 psi to 200 ° F (8,6 bar to 93 ° C)
