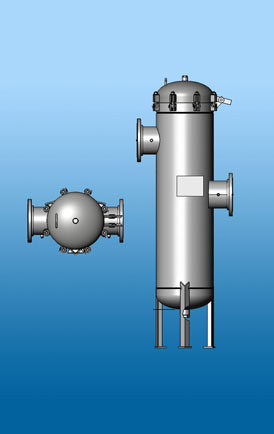

The Graver High Flow Series Filter Enclosures are designed to accept Graver and High Flow Series large geometry filter elements.
Available in both vertical and horizontal orientation, High Flow enclosures can accept from 1 to 7 filter elements.
There is also a horizontal, round-ended design that allows for easier platform-less removal and is easily emptied at the rear of the vessel to eliminate fluid spills.
Industrial grade enclosures available in 304, 316 and carbon steel hardened steel
ASME U code available
Designed for 1, 3, 4 or 7 filters per enclosure for flow rates up to 3500 GPM *
150 psig designs
Accepts 20 ", 40" and 60 "High Flow cartridges
Vertical and horizontal drawings offered
Retaining plate prevents the elements from coming off due to back pressure
Filter removal tool available to facilitate element change
Swivel bolts on 150 psi
Equipped with 1 "vent and 2" drain (1 "drain on tilted horizontal style
|
Coque O-ring |
Buna N, Viton, EPDM, Silicone |
|
Optional |
300 psi (20.6 bar) Flanged head models available - consult factory Do not use with compressed gases |
|
Operating Parameters / Maximum Operating Pressure: Carbon Steel Stainless steel |
150 psi (10.3 bar) at 260 ° C (500 ° F) in liquid service Stainless steel 150 psi (10.3 bar) at 300 ° F (149 ° C) in liquid service Do not use with compressed gases |
