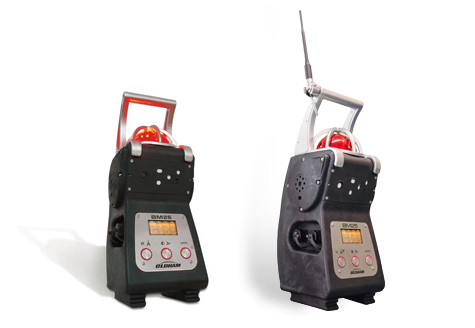

The BM 25 packs the benefits of a fixed system area monitor into a rugged, user-friendly and transportable instrument.
It was designed to detect one to five gases for mobile or temporary work applications, team protection, area surveillance or places where fixed detection systems are not suitable.
Up to 5 gases simultaneously
103 dB at 3 feet audible alarm
Ultra-bright flashing signal at 360°
Run time of 170 hours
Resistant to harsh environment
Easily transportable - less than 15 lbs
30 devices per network
16 independent networks
More than 0.5 mile RF line of site
|
CASE MATERIAL: |
IP66 - Impact resistant polycarbonate |
|
DIMENSIONS: |
470 x 180 x 190 mm (16.7" x 7.1" x 7.5") |
|
WEIGHT: |
6.8 kg (15 lbs) |
|
DISPLAY |
Graphic liquid crystal display with backlight |
|
SENSORS: |
Combustible Gas – Catalytic Diffusion Methane, Propane, Butane, Isobutane, LPG, Ethanol, Pentane – Infrared Oxygen and Toxic Gases – Electrochemical CO2 – Infrared Isobutylene – PID |
|
DATALOGGING CAPACITY: |
200,000 measurements |
|
AUDIBLE ALARM: |
103 dB @ 1 meter |
|
VISUAL ALARM: |
Ultrabright LED beacon visible 360 degrees |
|
OPERATING TEMPERATURE RANGE: |
-20°C to +50°C (-4°F to 122°F) sensor dependent |
|
OPERATING HUMIDITY RANGE: |
1% to 99% RH sensor dependent |
|
POWER SOURCE (RUN TIME): |
NiMH (up to 170 hours operating time, 135 hours in wireless mode) |
|
RECHARGE TIME: |
4.5 hours, typical |
