Data sheet

DM-534 O2

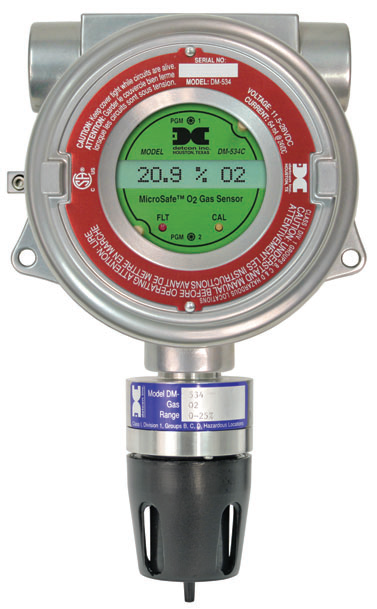

The Detcon Model DM-534 Detector is designed to detect and monitor O2 in air over a range of 0 to 25% by volume.

The sensor assembly is comprised of an electrochemical fuel cell mounted in a stainless steel housing that includes a splashguard with an integrated heat port, a signal conditioning control transmitter circuit, a base connection board, and an explosion-proof junction box.

The operator interface is via a small pocket magnet. One of the key features is the intuitive, built-in software that guides the user through routine calibration and setup menus using an integrated alphanumeric LED display.

  • CSA-NRTL Listed: Class I, Division 1, Groups B, C and D

  • 4-20 mA output

  • Simple Menu Driven Calibration - takes less than 3 minutes

  • Backlit LCD display and LEDs for fault and Cal status

  • Pluggable field replaceable transmitter

  • Electrochemical pluggable sensor

  • Built-in temperature compensation provides a direct correction to changes in ambient temperature

  • Expected sensor life of 2 years in the air with 20.9% oxygen

Sensor type

Galvanic metal air coil

Measuring range

0-25% oxygen

Precision / Repeatability

±1% FS

Operating temperature range

From -20 ° C to + 50 ° C; -4 ° F to + 122 ° F

Operating humidity range

0-99% RH without condensation

Input voltage

11.5-28 VDC
