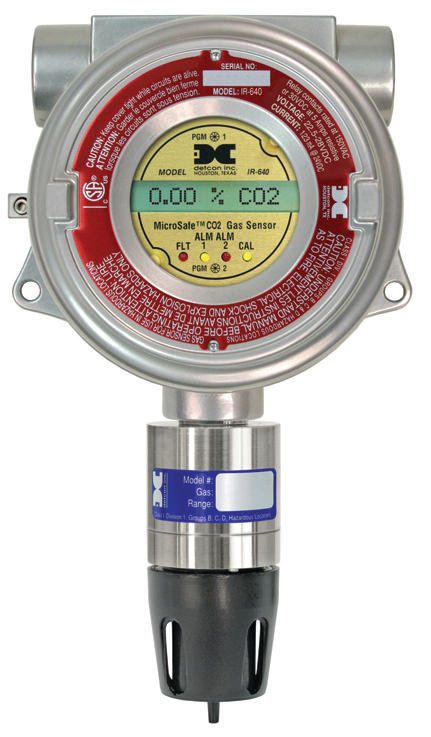

Detcon Model IR-640 Detectors are non-intrusive "smart" sensors designed to detect and monitor carbon dioxide.
The available detection ranges are 0-0.3%, 0-1%, 0-3% and 0-5% by volume.
The sensor assembly consists of a miniature infrared optical sensor in a stainless steel housing that includes a splash guard with integral cal port, a pluggable control emitter circuit, a basic connection board and an explosion-proof enclosure.
CSA-NRTL Listed: Class I, Division 1, Groups B, C and D
Compatible with PLCs, SCADA, DCS, via 4-20 mA, and / or RS-485, and / or alarm relays
Sensor status and parameters accessible via RS-485 (Modbus ™)
Standard programmable relays (two alarms plus fault)
Simple Menu Driven Calibration - takes less than 3 minutes
Backlit LCD and LED indicators for FAULT and CAL status
Field replaceable miniature optical sensor
Pluggable field replaceable transmitter
Low energy consumption
Expected life of the 5 year sensor
|
Sensor type |
Non-dispersive infrared optics (NDIR) |
|
Measuring range |
0 - 0.3% / 0 - 1% / 0 - 3% / 0 - 5% by volume |
|
Precision / Repeatability |
± 5% full scale |
|
Response / compensation time |
T50 <15 seconds T90 <40 seconds |
|
Operating temperature range |
-40 ° F to + 167 ° F; -40 ° C to + 75 ° C |
|
Operating humidity range |
0-99% RH without condensation |
