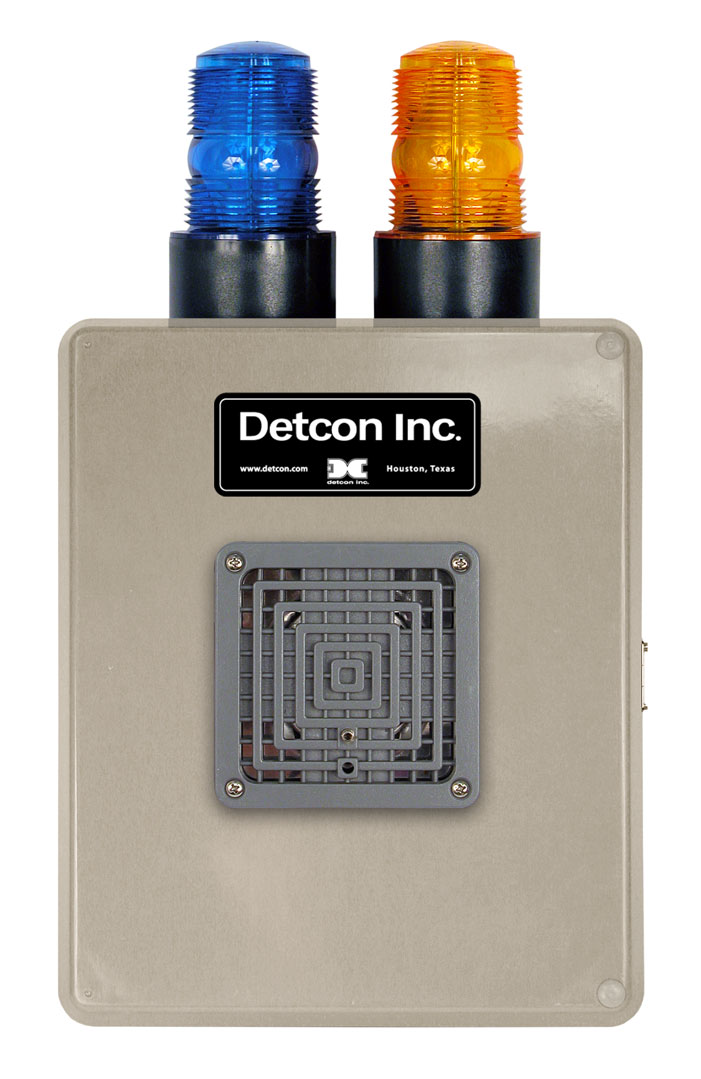

Detcon Model AV2-N4X audio visual alarm stations are designed for installation and use in light industrial environments. The alarm station consists of a combination of two warning lights and a siren. Warning lights can consist of any combination of dome colors such as amber, blue, clear, green, or red. The audible alarm is capable of producing coded blasts or sustained tones.
Model AV2-N4X alarm assemblies are specifically designed for non-hazardous general purpose locations or environments where a very bright visual and high decibel alarm signal is required. The high-intensity strobe lights provide 60- 80 flashes per minute. The siren produces a noise level of 99dbA @ 10 feet.
The lights are UL listed and CSA Certified and meet Type 4X watertight, dust-tight requirements. The siren is UL listed and CSA Certified. Model AV2-N4X alarm components are pre-assembled and packaged in a NEMA 4X raintight enclosure. Overall dimensions are 17"H x 9.5"W x 5.5"D.
Rugged Construction
Pre-Assembled
Configurable Strobe Colors
NEMA 4; Class I, Div.1; & Class I, Div.2 Versions Available
Configurable Voltage
Easy Mounting
|
Light Specifications |
|
|
Voltage: |
12VDC, 24VDC, 120VAC 50/60HZ, 240VAC 50/60HZ |
|
Mount: |
1/2" Pipe |
|
Operating Current: |
0.44 Amps at 12VDC, 0.22 Amps at 24VDC 0.10 Amps at 120VAC, 0.07 Amps at 240VAC |
|
Dome Colors: |
Amber, Blue, Clear, Green, Red |
|
Operating Temperature: |
-31°F to 150°F |
|
Light Source/Lamp Style: |
Strobe Tube |
|
Lamp Life: |
7,000 Hours |
|
Candle Power Peek: |
175,000 |
|
Flash Rate/Minute: |
60-80 |
|
Joules per Flash: |
1.75 |
|
Intensity Candela: |
40 Amber, 20 Blue, 50 Clear, 20 Green, 10 Red |
|
Enclosure Rating: |
Type 4 |
|
Dimensions: |
5"H x 3"Diameter |
|
Siren Specifications |
|
|
Voltage: |
12VDC, 24VDC, 120VAC 50/60HZ, 240VAC 50/60HZ |
|
Mount: |
Surface / Panel |
|
Operating Current: |
0.50 Amps at 12VDC, 0.25 Amps at 24VDC 0.18 Amps at 120VAC, 0.09 Amps at 240VAC |
|
Temperature Rating: |
-65°F to +150°F |
|
Sound Output: |
99db @ 10 feet, 109dB @ 1 meter |
|
Enclosure Rating: |
Type 4 |
|
Height: |
4 in |
|
Width: |
4 in |
|
Depth: |
2.5 in |
|
Warranty: 1 Year |
|
