Industry proven performance combined with a low-profile design make a logical choice for those areas that require continuous monitoring but not the environmental protection of an explosion-proof enclosure.

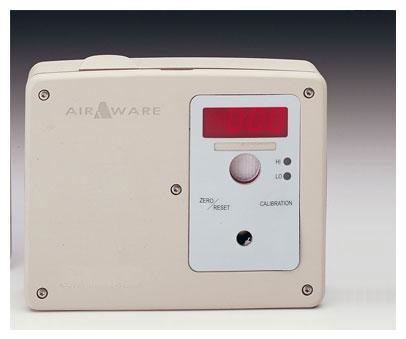

Providing discrete monitoring and enhanced aesthetics for more commercial or institutional settings, the AirAware Series is the ideal solution for reliable, low-cost fixed-point monitoring.
The AirAware can be configured to operate as a monitor with local LED display, a controller with onboard relay switching capability, a transmitter with 4-20 mA or ModBus RTU outputs, or as a transmitter with on-board relays.
Each configuration is designed to meet your specific indoor monitoring needs. Every AirAware is equipped with electrochemical sensing technology, dual alarm LEDs, push-button operation and a NEMA 4 type enclosure.
Configure your AirAware to match your needs, adding options such as a vanity plate to hide the display.
The AirAware is covered by a one-year warranty and carries CSA approval for non-hazardous locations.
Institutional, commercial and light industrial monitoring
Monitor any one of nine gases
Simple installation using 12-24 VDC operation, or an optional AC power adapter that plugs into any standard 120 VAC wall outlet (North American plug).
Bright display constantly shows gas concentrations
Single button calibration, alarm muting and zero functions
Visual alarm to alert of potential gas hazards (audio optional)
ModBus digital output (4-20 mA output optional) for interfacing with control devices
Optional dual-alarm relays can turn on fans and warning sirens, or shut-down a process.
|
Case: |
NEMA 4 type, General purpose indoor use. Electroplated for RFI protection |
|
Dimensions: |
18.29 cm x 14.22 cm x 4.06 cm (7.2′′ x 5.6′′ x 1.6′′ ) |
|
Weight: |
454 g (16 oz) |
|
Sensor Type: |
Electrochemical |
|
Measuring Ranges: |
Carbon Monoxide, Hydrogen Sulfide – 0 to 999 ppm in 1 ppm increments |
|
Power Source (Run Time): |
12-24 VDC (110 AC adapter optional with North American plug) |
|
Temperature Ranges: |
-20°C to 50°C (-4°F to 122°F ) typical, consult factory for gas specific temperature ranges |
|
Humidity Range: |
Oxygen – 0-99% |
|
Approvals: |
CSA – C.22.2 No. 205-M 1983 (non-hazardous locations); CE (pending) |
