Data sheet

DM-100-AsH3

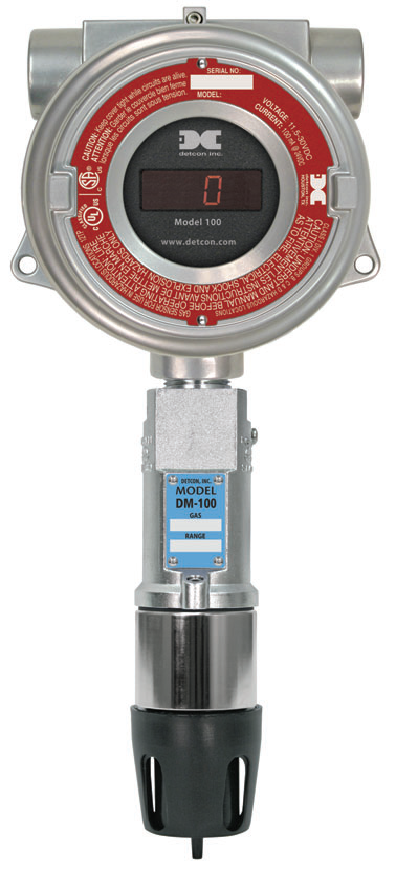

Detcon Model DM-100-AsH3 is a gas detection sensor designed to detect and monitor Arsine in air over the range of 0-1 ppm using electrochemical sensor technology.

Method of detection is by diffusion adsorption. Air and gas molecules diffuse through a porous membrane contacting an electrolyte solution which creates a change in electrical conductance between a reference and measure electrode.

This change in conductance is conditioned by internal electronic circuitry to provide a linear 4-20 milliamp signal proportional to the gas concentration.

Model DM-100 Series sensors feature intelligent electronics, non-intrusive operator interface and comprehensive fault diagnostics. The sensor is packaged in an electro-polished 316 stainless steel housing fitted with a ¾ inch NPT thread.

The plug-in, field replaceable sensor cell features large surface area gold-plated pins that reduce the effects of corrosion in harsh industrial environments.

Signal conditioning electronics are completely encapsulated in the sensor housing adding a high level of durability to the design. The packaging is XP-intrinsically safe.

This innovative design marks a return to a simple, more affordable, and durable gas detection sensor without compromising quality.

Model DM-100 sensors provide a 2-wire loop powered 4-20 mA current signal equivalent to the sensor range of detection. Upper enclosure options are aluminum and stainless steel (includes a transient protection terminal board).

Additional accessories include wireless communications, a loop powered digital display, Remote Alarm Module (RAM), HART, and a current to RS-485 converter.

The standard serial converter is Modbus RTU. Each sensor is shipped with a splash guard with integral calibration port. Detcon’s toxic gas sensors have a long shelf life and are supported by an industry-leading warranty

  • XP-intrinsically Safe

  • NEMA 4X Weatherproof & NEMA 7 Explosion Proof

  • Class I, Div. 1, Groups A, B, C, & D

  • 2 Wire Loop-powered

  • Field Replaceable Electrochemical Sensor

  • Non-intrusive Magnetic Interface

  • Built-in Diagnostics

  • Fully Encapsulated Electronics

  • Electropolished 316SS Construction

  • Quick Thread Release (for sensor replacement)

  • Integral Calibration Port

Sensor Type

Continuous diffusion/adsorption

3-electrode electrochemical cell

Plug-in field replaceable Type

Measurement Range

0-1 ppm, Other ranges available

Accuracy/Repeatability

±2% FS

Response/Clearing Time

T90 <60 seconds

Span Drift

<5% signal loss per month

Outputs

Linear 4-20 mA DC
