Data sheet

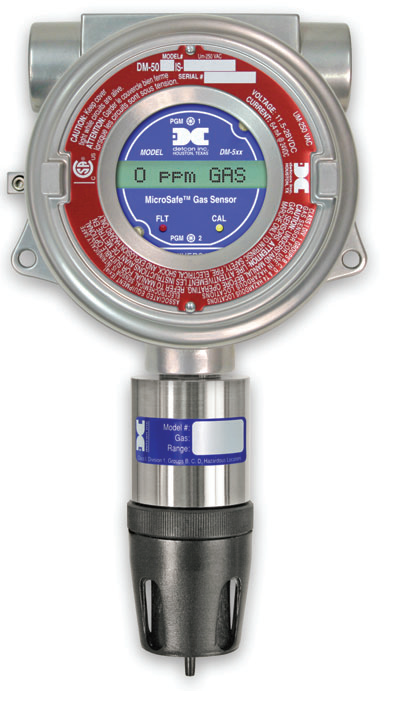

The Detcon Model DM-500IS-Br2 Detector is designed to detect and monitor Br2 in air in the 0-5 ppm range.

The sensor assembly consists of an electrochemical fuel cell mounted in a stainless steel and ABS plastic casing incorporating a splashguard with integrated heat port, a signal conditioning control transmitter circuit, a base card and a controller. explosion-proof junction box.

The intrinsically safe sensor housing design allows direct contact of the target gas with the electrochemical sensor, maximizing response time, detectability and repeatability.

And because the intrinsically safe case design does not use stainless steel flame arresters, it eliminates inaccurate readings due to target gas absorption.

  • CSA and UL Listed: Class 1, Div. 1, Groups B, C and D

  • 4-20 mA output

  • Simple Menu Driven Calibration - takes less than 3 minutes

  • Backlit LCD display and LEDs for fault and Cal status

  • Universal transmitter

  • Intrinsically safe sensor housing

  • Pluggable field replaceable transmitter

  • Electrochemical pluggable sensor

Sensor type

Electrochemical fuel cell

Measuring range

0-5 ppm bromine

Other ranges available


±2% FS

Response / compensation time

T90 <60 seconds

Span Drift

<2% loss of signal per month

Operating temperature range

From -20 ° C to + 50 ° C; -4 ° F to + 122 ° F

Operating humidity range

15-90% RH without condensation


Linear 4-20 mA DC
