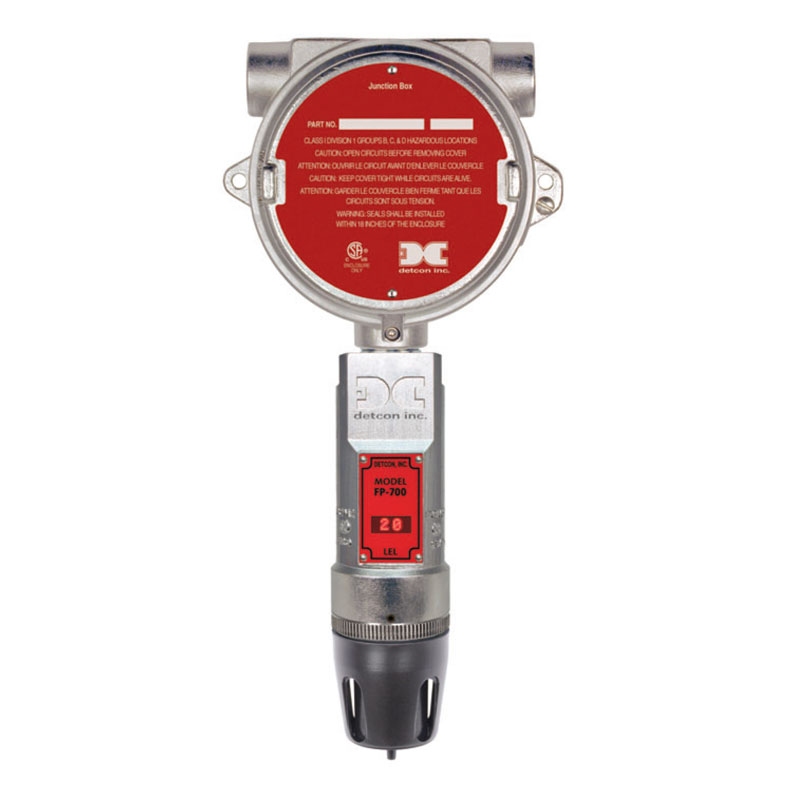

Detcon Model FP-700 is a non-intrusive "Smart" sensor designed to detect and monitor fuel gases in air over the range of 0-100% LEL using catalytic bead sensor technology.

The plug-in, field replaceable detector is poison-resistant and features over-sized gold-plated connections that help prevent corrosion.

The FP-700's rugged frame includes an electro-polished 316 stainless steel housing with fully encapsulated electronics and dual layer surge protection.

This innovative design virtually eliminates the need for water ingress, corrosion, vibration, and transient spikes.

A primary feature of the Model FP-700 is embedded intuitive software that simplifies the operator's interface through the calibration, configuration, and fault diagnostic functions using a built-in alpha / numeric display.

The Model FP-700 is equipped with standard 4-20mA analog, and Modbus ™ RS-485 outputs.

Among its unique features is a wireless option that can be used with Detcon's SmartWireless® product line. Additional integration options include Remote Alarm Module (RAM), HART, and Foundation Fieldbus.

Detcon's fuel gas sensor has an infinite shelf life and is supported by a 2-year warranty
