Data sheet

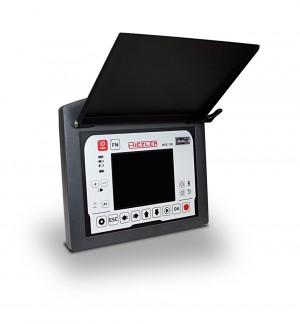

Our smallest control unit MSE-100

Your central control and documentation unit
for all our push cameras.

  • The high resolution and daylight suitable 5.6 inch TFT display provides brilliant picture quality and together with the ergonomically located controls allows a pleasant work

  • Videos and pictures are saved on a SD-Card  (up to 32GB SD cards are supported)

  • Compatible and expandable with all our cameras, reels and manual cable drums


  • Solid, shock-resistant housing with light shield

  • Controls for camera and video recorder control

  • Expandable for pan and tilt cameras by a hand held remote control

  • High-resolution, bright 5.6-inch TFT display

  • Integrated MPEG-4 Video Recorder (avi) with snapshot function (bmp)

  • Digital meter counter with displaying in the video image

  • Display of sensor values (pan and tilt angle in degrees, internal pressure in bar with alarm function)

  • Li-Ion battery with a battery charger and charge indicator

  • 12 V jack for car operation

  • Interfaces: 1 x BNC Video IN, 1 x BNC Video OUT

Article number:



2.4 kg / 5.3 lbs


10.6 x 5.5 x 9.6 inch

Power supply:

12 - 24 V DC via external power supply (100 - 240 V AC)
