Compact. Mobile. Modular.

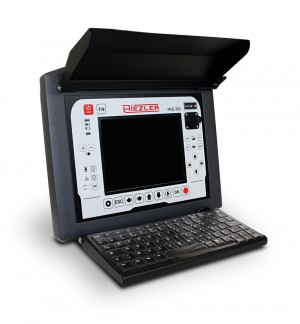

Our control unit MSE-300 .Your central control and documentation unit for all our push cameras.
The high resolution and daylight suitable 8 inch TFT display provides brilliant picture quality and together with the ergonomically located controls allows a pleasant work
Videos and pictures are saved on a SD-Card (up to 32GB SD cards are supported)
Compatible and expandable with all our cameras, reels and manual cable drums
Solid, shock-resistant housing with light shield
Controls for camera and video recorder control
Expandable with a hand held remote control
High-resolution, bright 8-inch TFT display
Integrated MPEG-4 Video Recorder (avi) with snapshot function (bmp)
Digital meter counter with displaying in the video image
Text generator
- configurable status line with date, time and meter counter
- create and use 64 parked words and 8 parked pages
- Keyboard with protective foil for outdoor use
- RS232 interface (optional)
Display of sensor values (pan and tilt angle in degrees, internal pressure in bar with alarm function)
Li-Ion battery (extended runtime) with a battery charger and charge indicator
12 V jack for car operation
Interfaces: 1 x BNC Video IN, 1 x BNC Video OUT
|
Article number: |
5-0037-001 |
|
Weight: |
4.4 kg / 9.7 lbs |
|
Size: |
35 x 19 x 31.5 cm / 13.8 x 7.5 x 12.4 inch |
|
Power supply: |
12 - 24 V DC via external power supply (100 - 240 V AC) |
